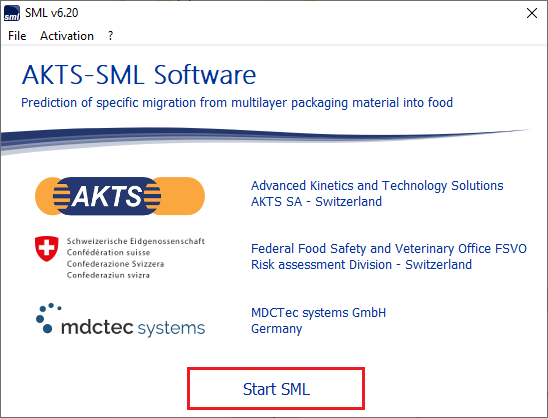

SML- SPECIFIC MIGRATION LIMITS Software

Prediction of Migration Rate of Species
from Packaging Materials to Packed Goods

E-Learning

Data Analysis

Package structure

Food group/ Simulant

Migrants

Migrant properties (Concentration, Diffusion and Partition Coefficient)

Migration calculation

Results /Compliance certificate

Package structure

Food group/ Simulant

Migrants

Migrant properties (Concentration, Diffusion and Partition Coefficient)

Migration calculation

Results /Compliance certificate

Package structure

Food group/ Simulant

Migrants

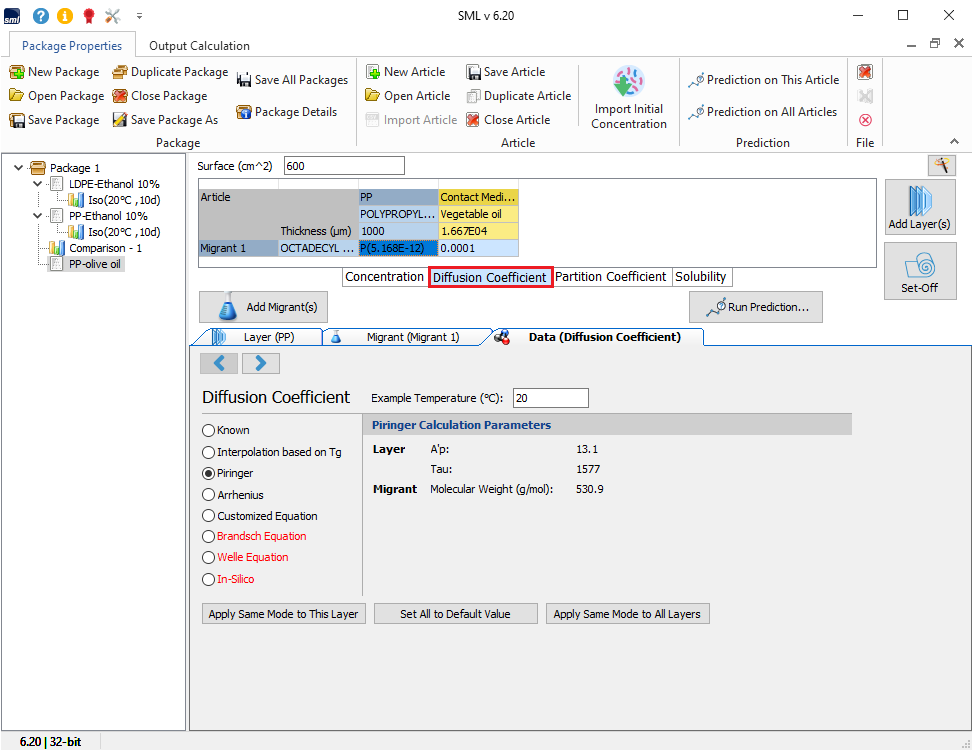

Migrant properties (Concentration, Diffusion and Partition Coefficient)

Migration calculation

Results /Compliance certificate

The AKTS-SML software allows the specific migration assessment for complex materials, with different geometries and any multi-layer structure. Simulation of the migration process is based on Fick’s 2nd law of diffusion under consideration of partitioning between adjacent layers or contact media in closed systems. The software contains a database of more than 20’000 chemicals and offers comprehensive estimation procedures for diffusion and partitioning coefficients. In case of missing required parameters, the software marks the method in red and indicates which parameters are missing. The end user can add these parameters manually (if known) or has to choose another method.

The use of AKTS-SML software can be described in four steps:

The workflow has therefore 4 main steps:

  • 1. Define the package by creating the different articles of the package and introducing their properties.
  • 2. Predict the migration using different temperature profiles (iso, non-iso, worldwide climate, etc.).
  • 3. Analyse the calculated outputs.
  • 4. Check the conformity of the results with corresponding legislations.

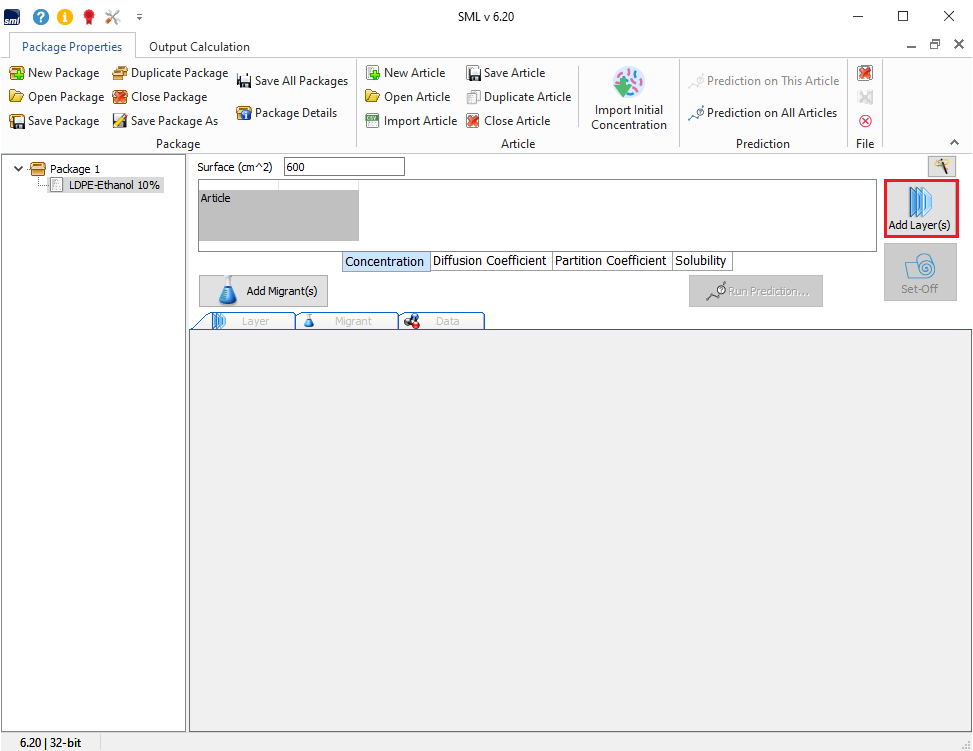

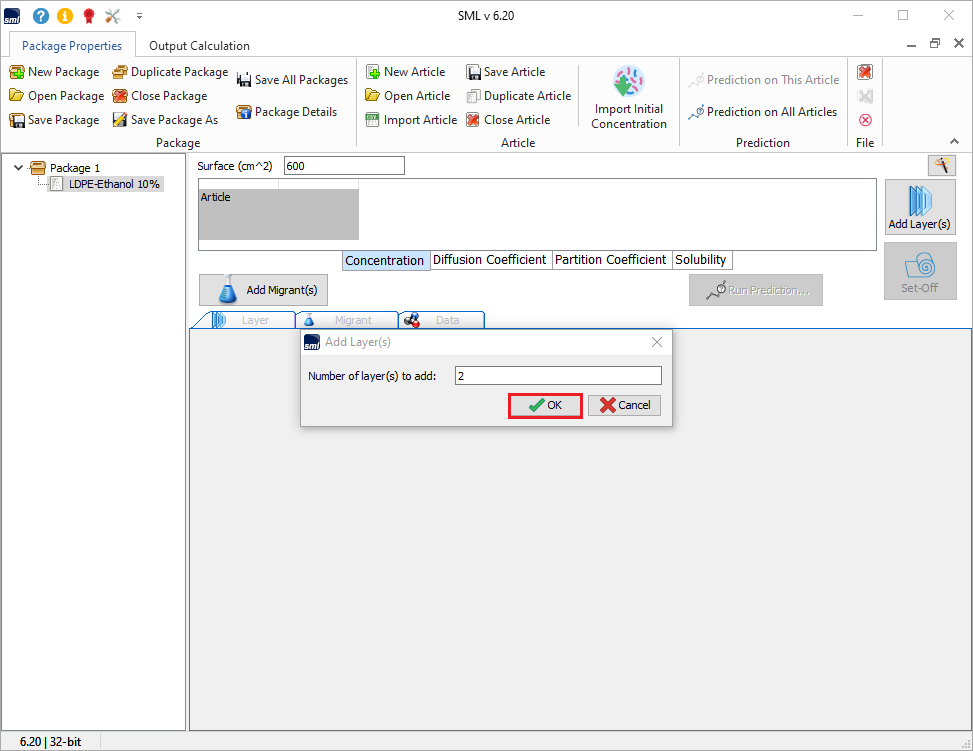

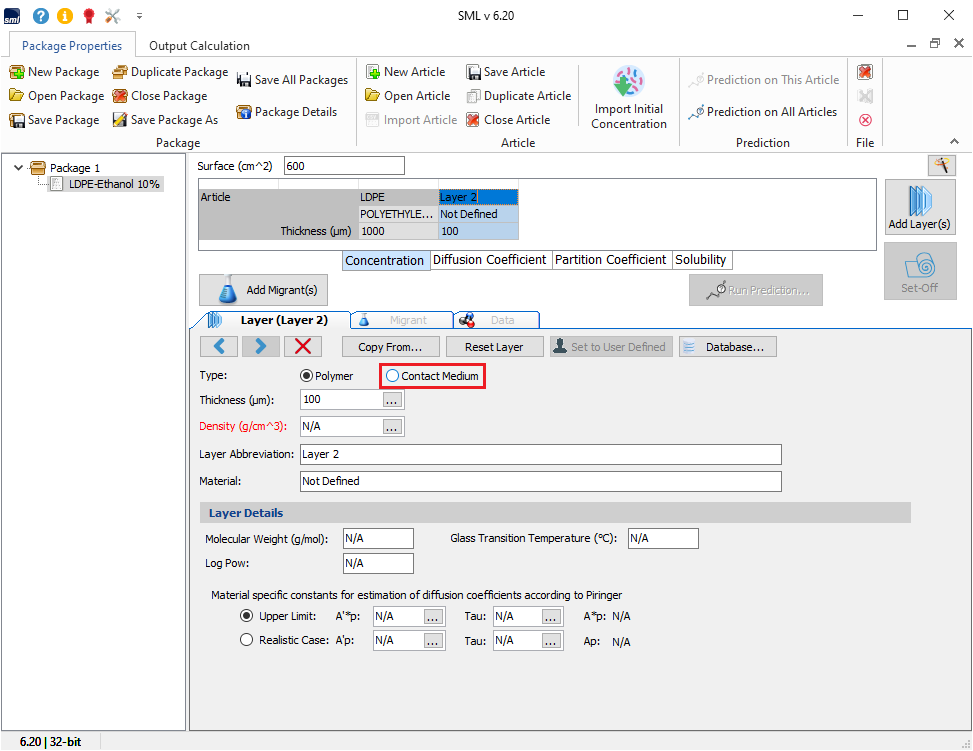

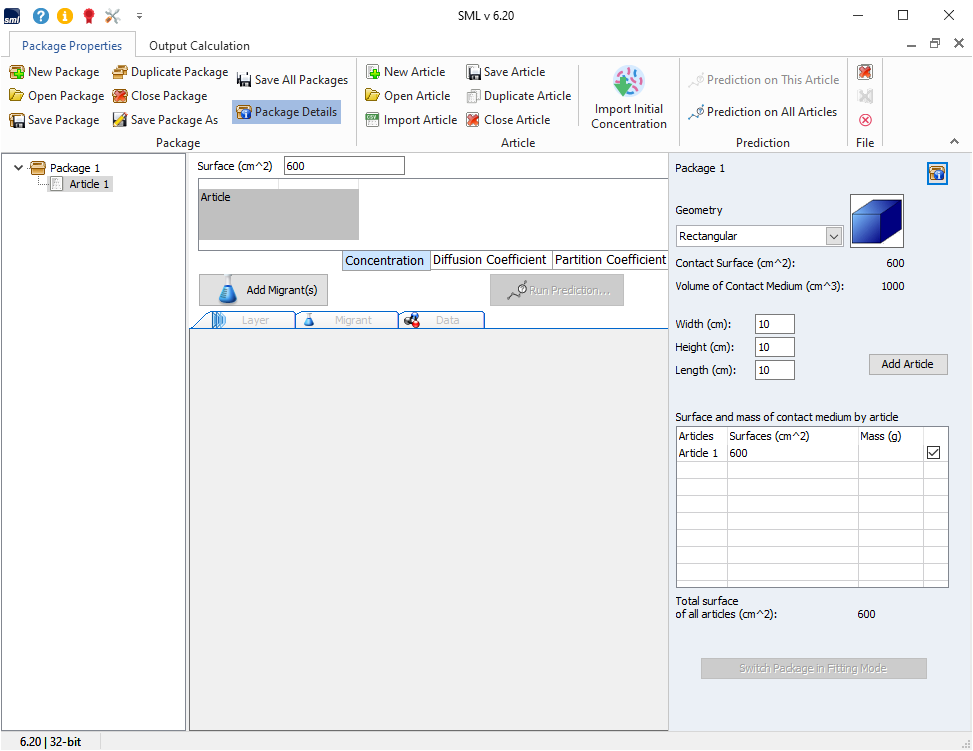

Package structure

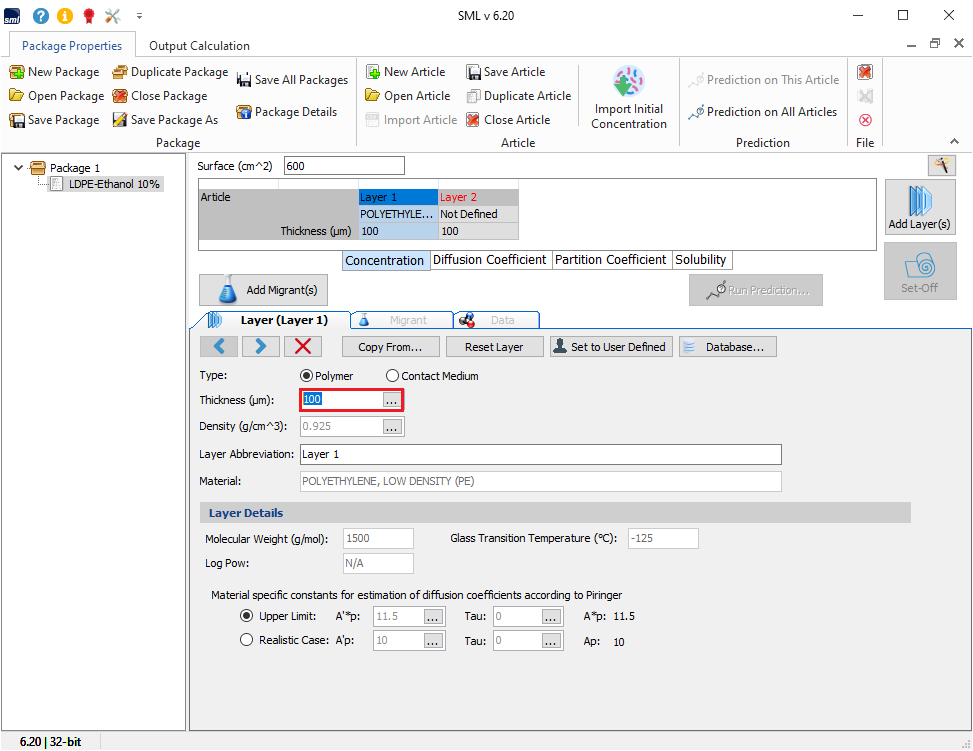

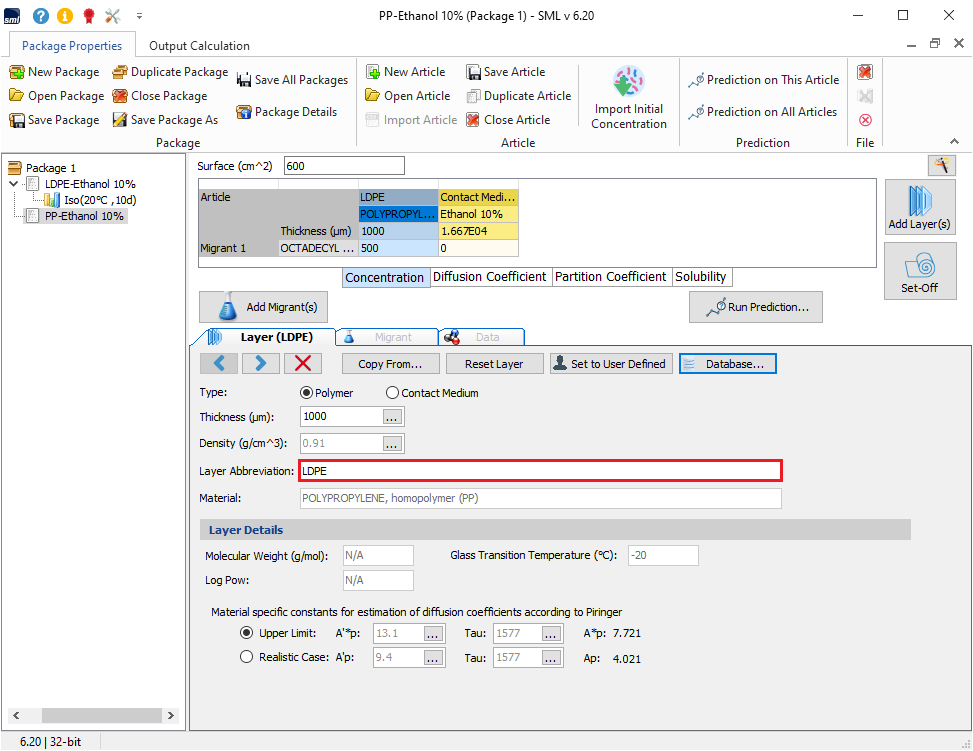

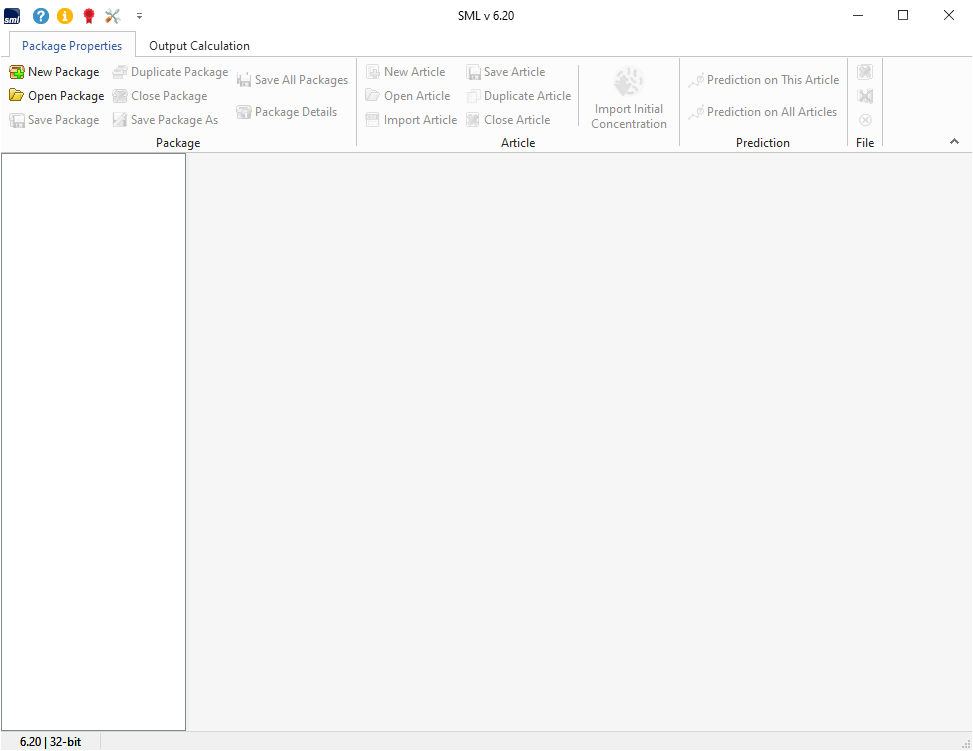

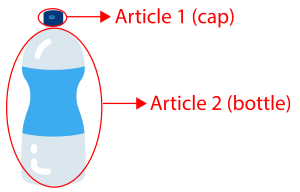

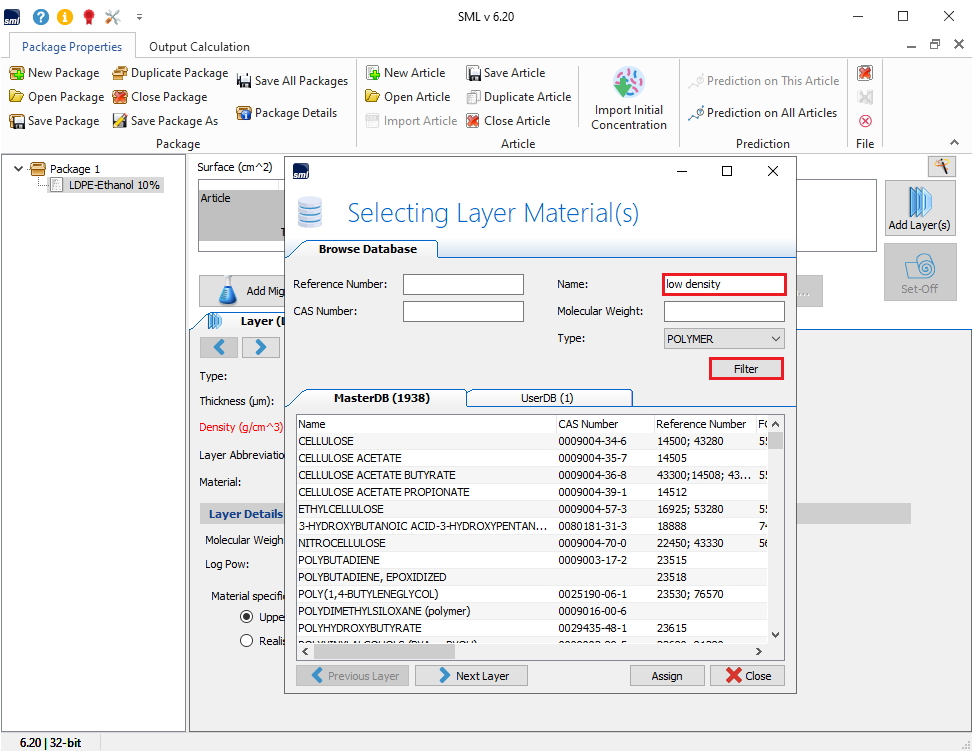

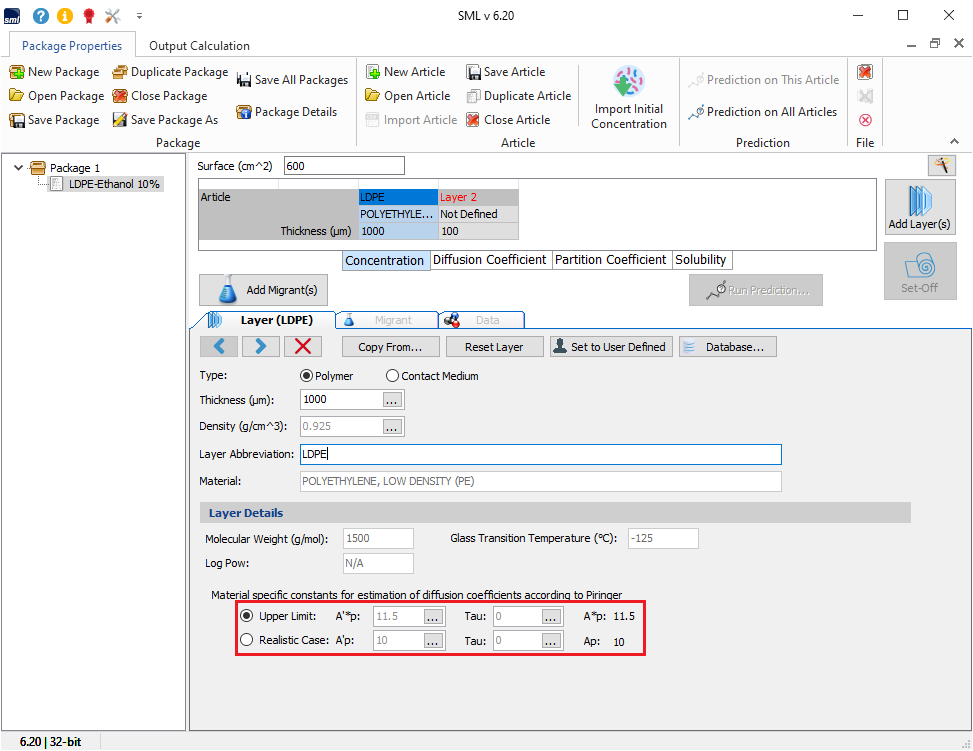

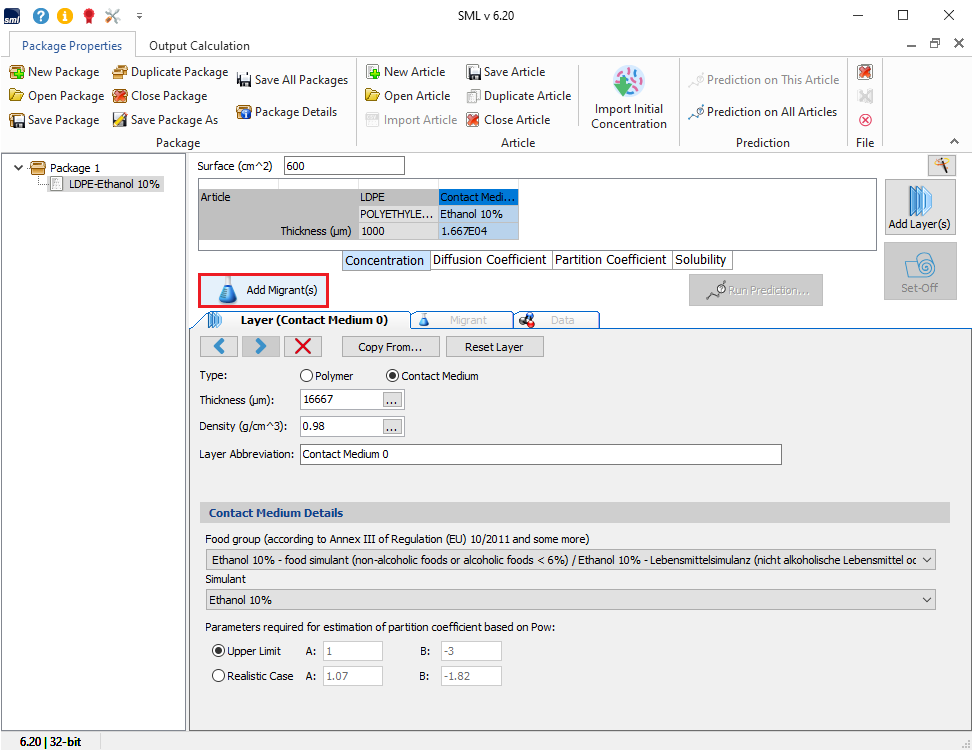

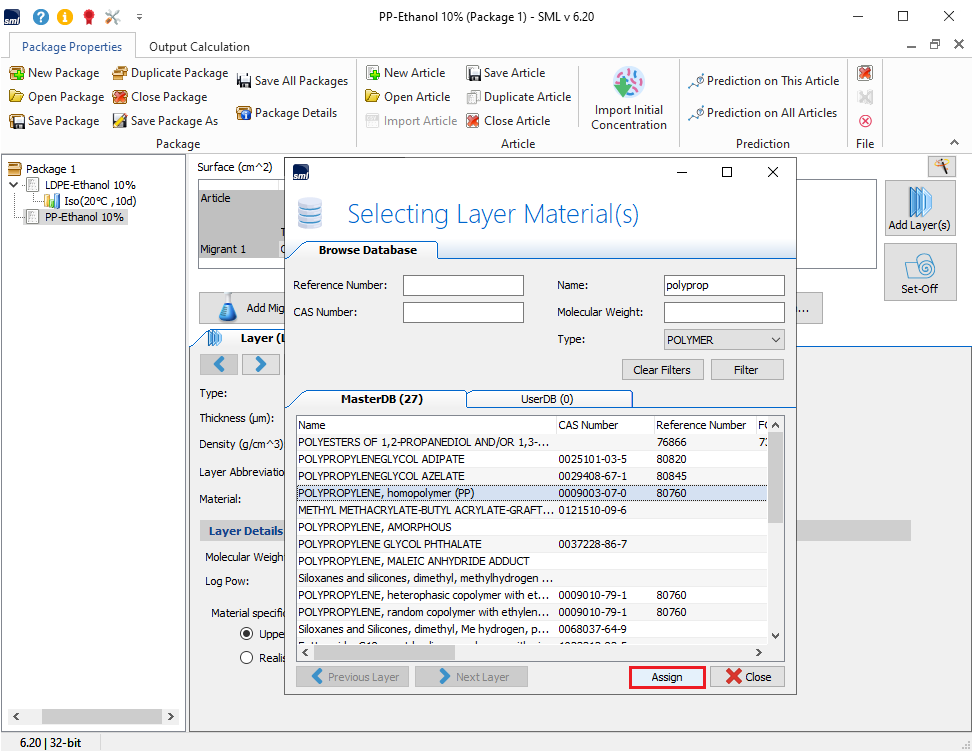

A package is a group of different articles, each having different layers properties. For instance, a bottle can be treated as two articles: the bottle cap and the bottle body. An article is composed of one or more layers of different sizes and properties.

<i>Fig.1</i>
<i>Fig. 2</i>
<i>Fig. 3</i>

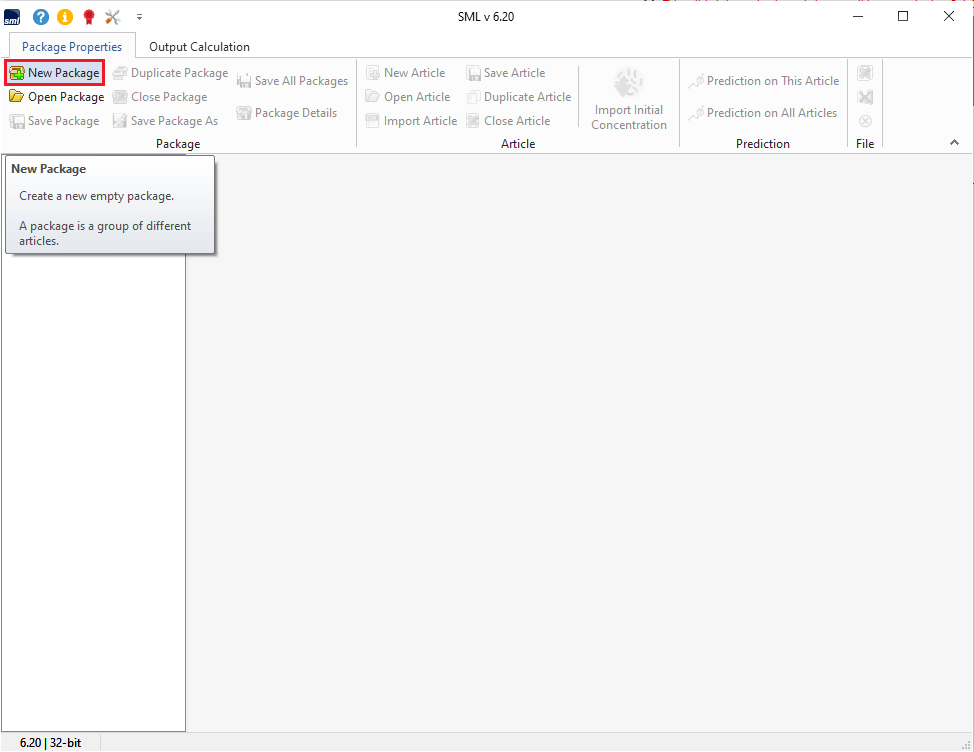

<i>Fig. 4</i>
<i>Fig.5</i>

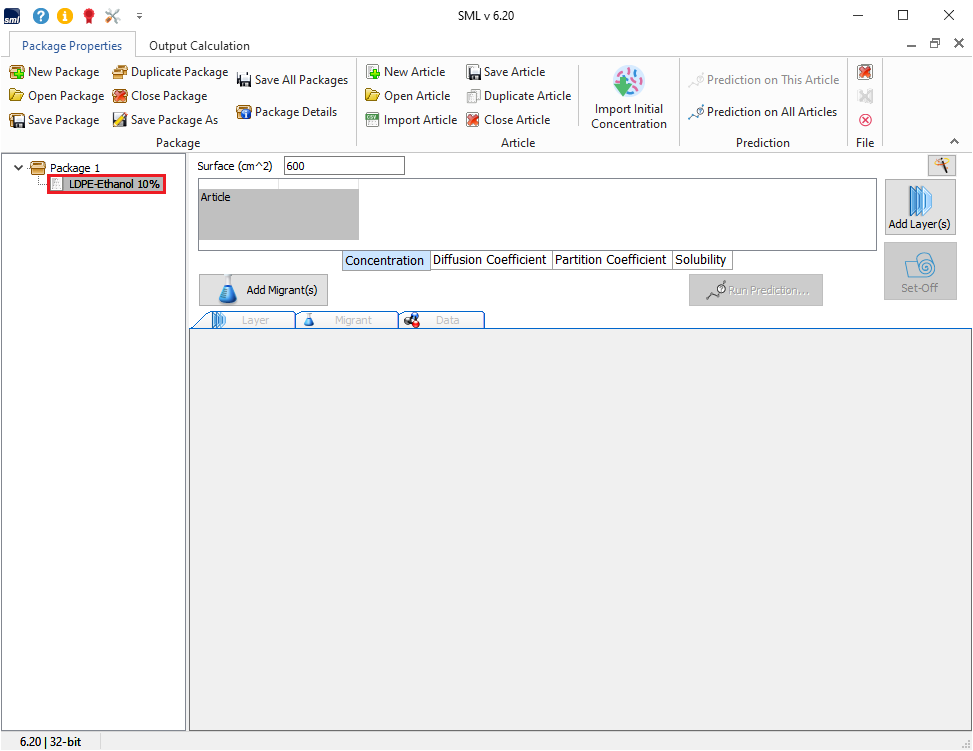

<i>Fig. 6</i>
<i>Fig. 7</i>

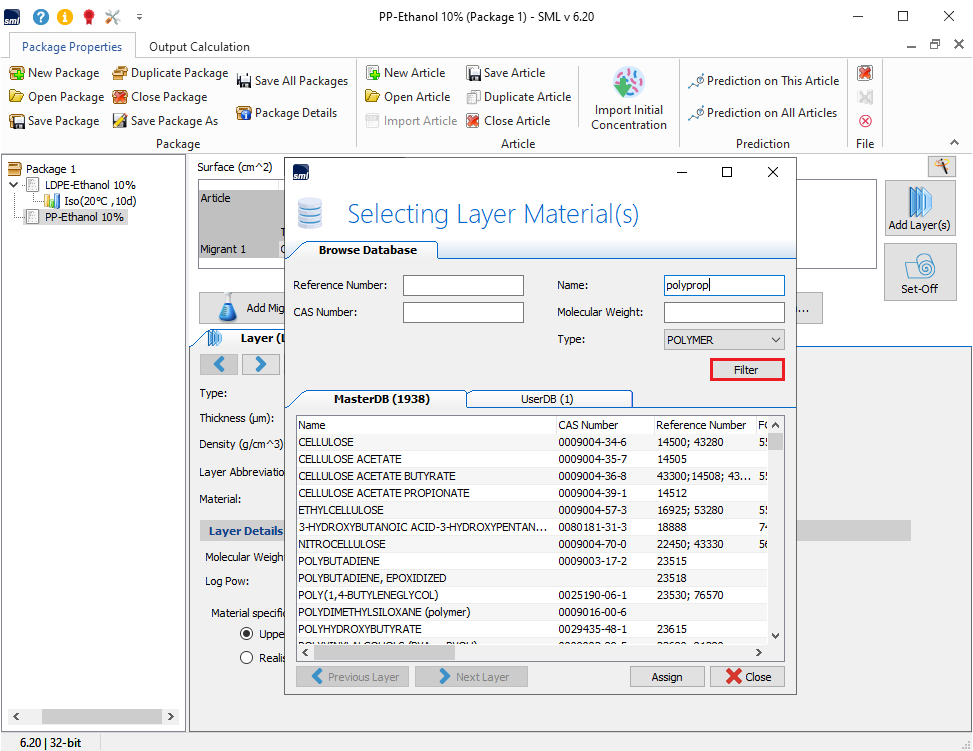

<i>Fig. 8 </i>
<i>Fig. 9</i>

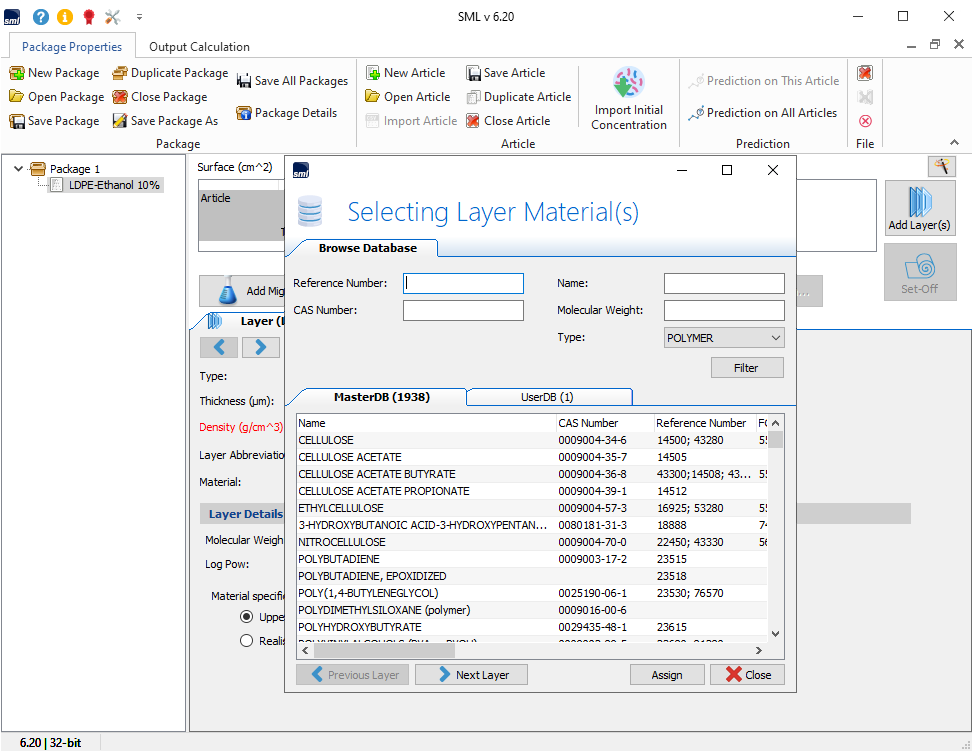

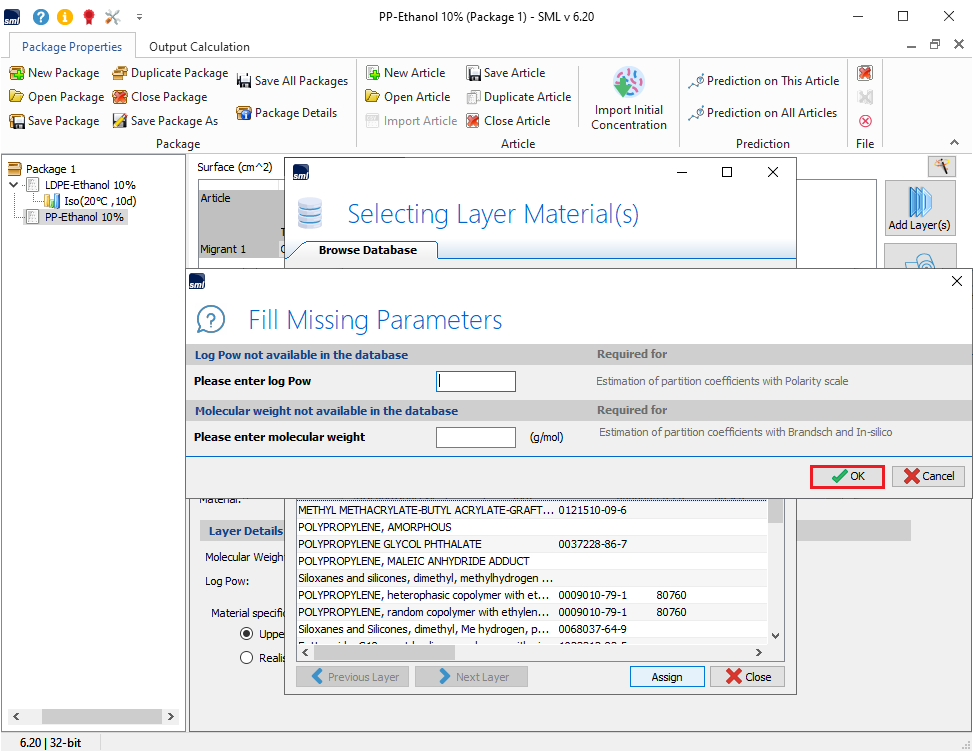

<i>Fig. 10 </i>
<i>Fig.11</i>

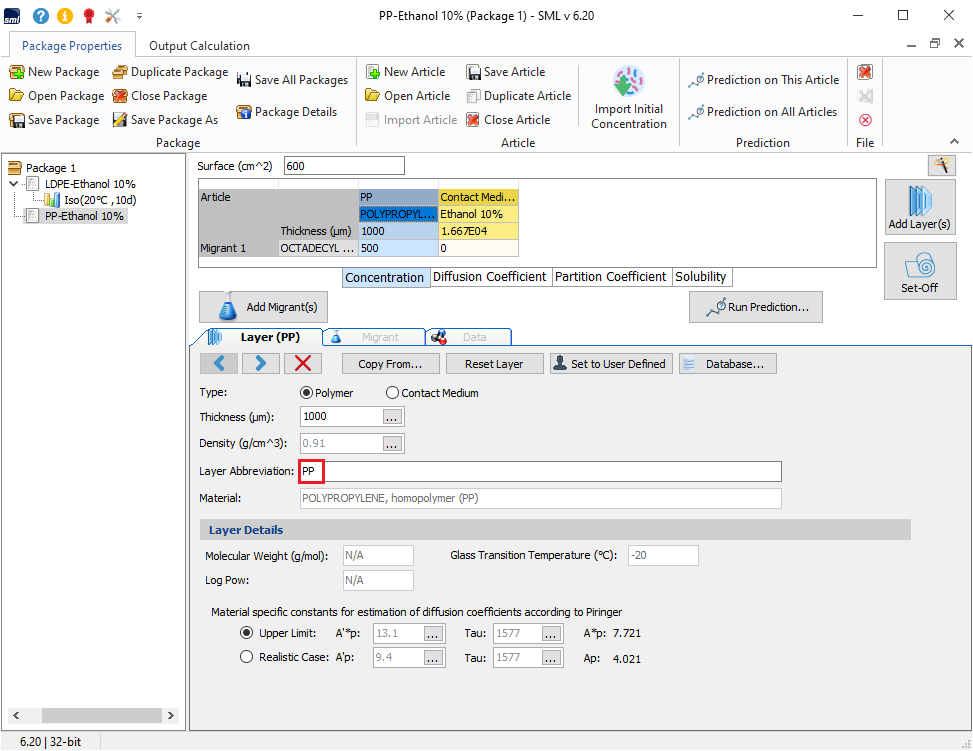

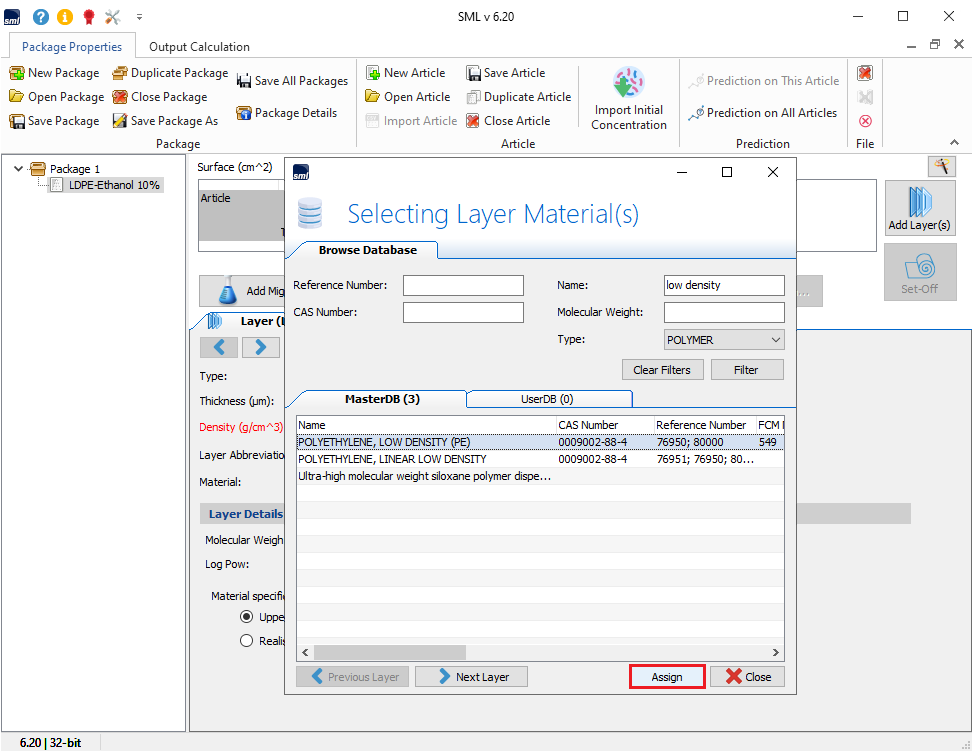

<i>Fig. 12</i>

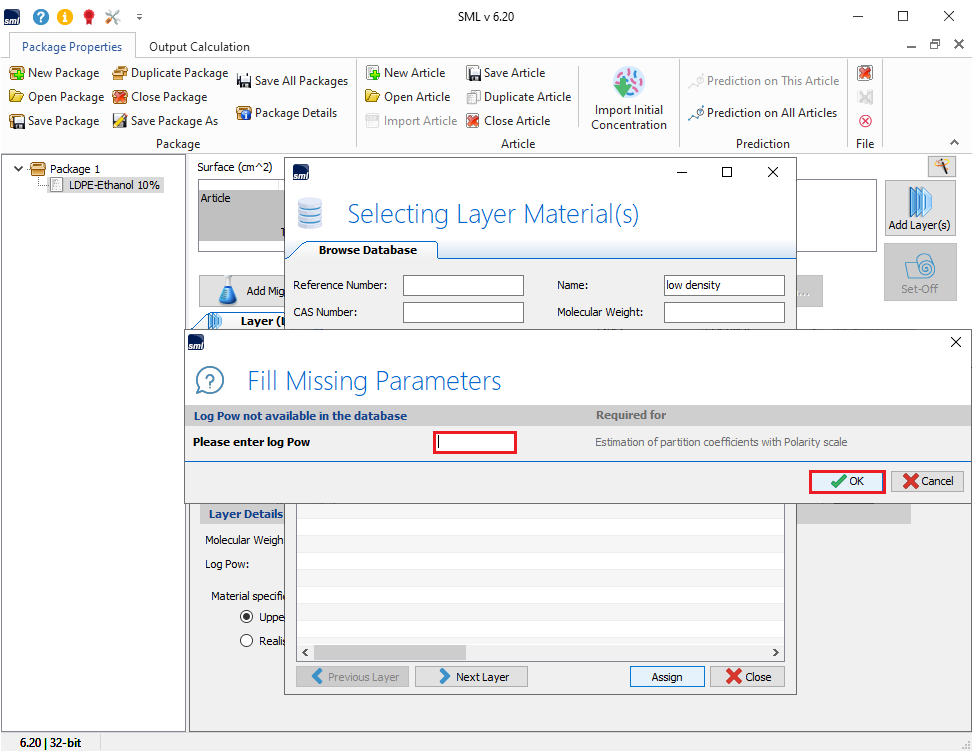

<i>Fig.13</i>

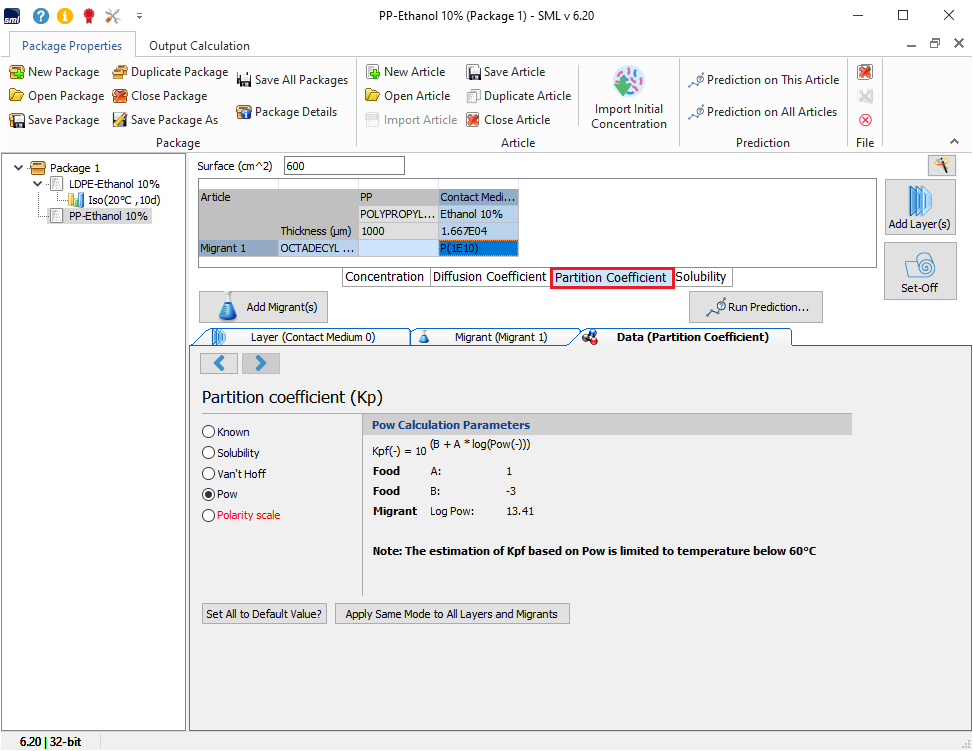

<i>Fig. 14</i>
<i>Fig. 15</i>
<i>Fig. 16</i>
previous arrow
next arrow
Fig.1
&lt;i&gt;Fig.1&lt;/i&gt;
Fig. 2
&lt;i&gt;Fig. 2&lt;/i&gt;
Fig. 3
&lt;i&gt;Fig. 3&lt;/i&gt;
Fig. 4
&lt;i&gt;Fig. 4&lt;/i&gt;
Fig.5
&lt;i&gt;Fig.5&lt;/i&gt;
Fig. 6
&lt;i&gt;Fig. 6&lt;/i&gt;
Fig. 7
&lt;i&gt;Fig. 7&lt;/i&gt;
Fig. 8
&lt;i&gt;Fig. 8 &lt;/i&gt;
Fig. 9
&lt;i&gt;Fig. 9&lt;/i&gt;
Fig. 10
&lt;i&gt;Fig. 10 &lt;/i&gt;
Fig.11
&lt;i&gt;Fig.11&lt;/i&gt;
Fig. 12
&lt;i&gt;Fig. 12&lt;/i&gt;
Fig.13
&lt;i&gt;Fig.13&lt;/i&gt;
Fig. 14
&lt;i&gt;Fig. 14&lt;/i&gt;
Fig. 15
&lt;i&gt;Fig. 15&lt;/i&gt;
Fig. 16
&lt;i&gt;Fig. 16&lt;/i&gt;
previous arrowprevious arrow
next arrownext arrow

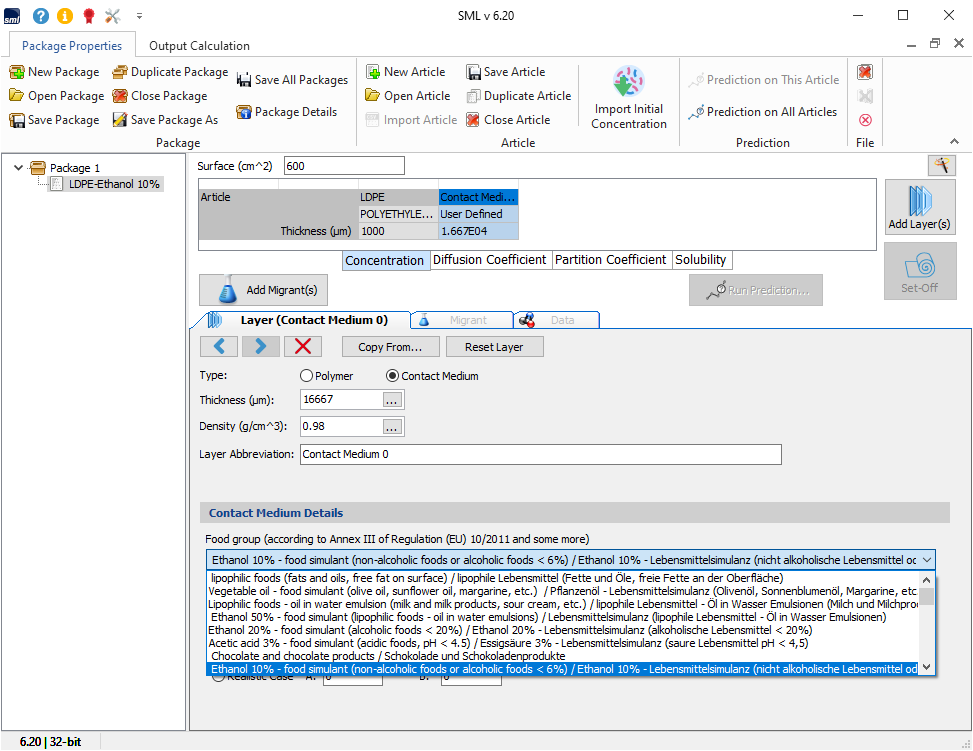

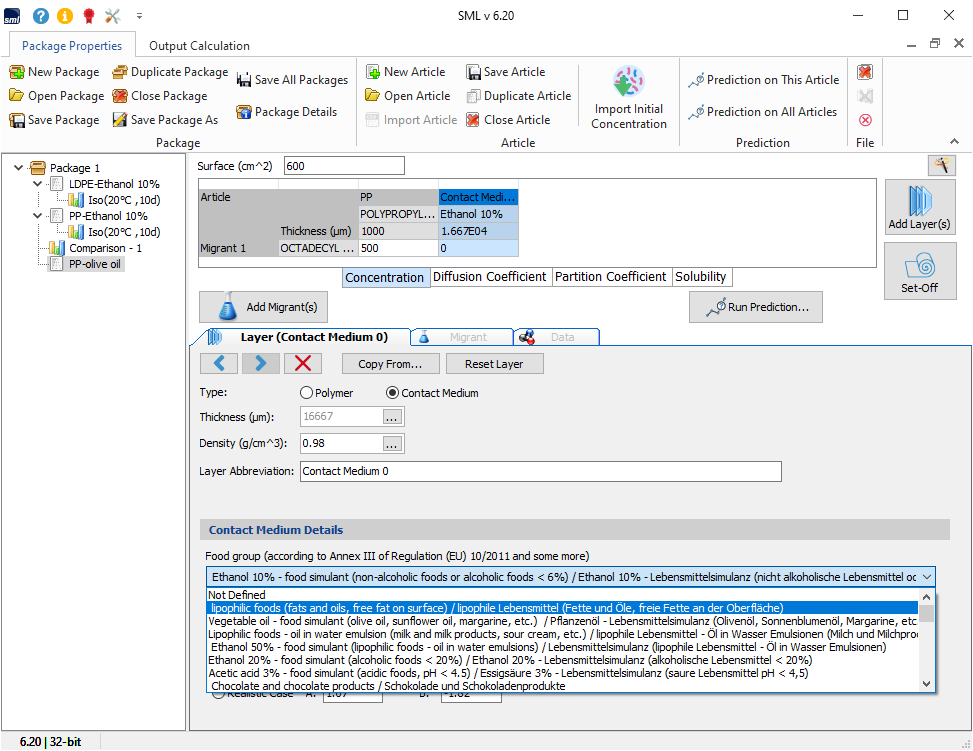

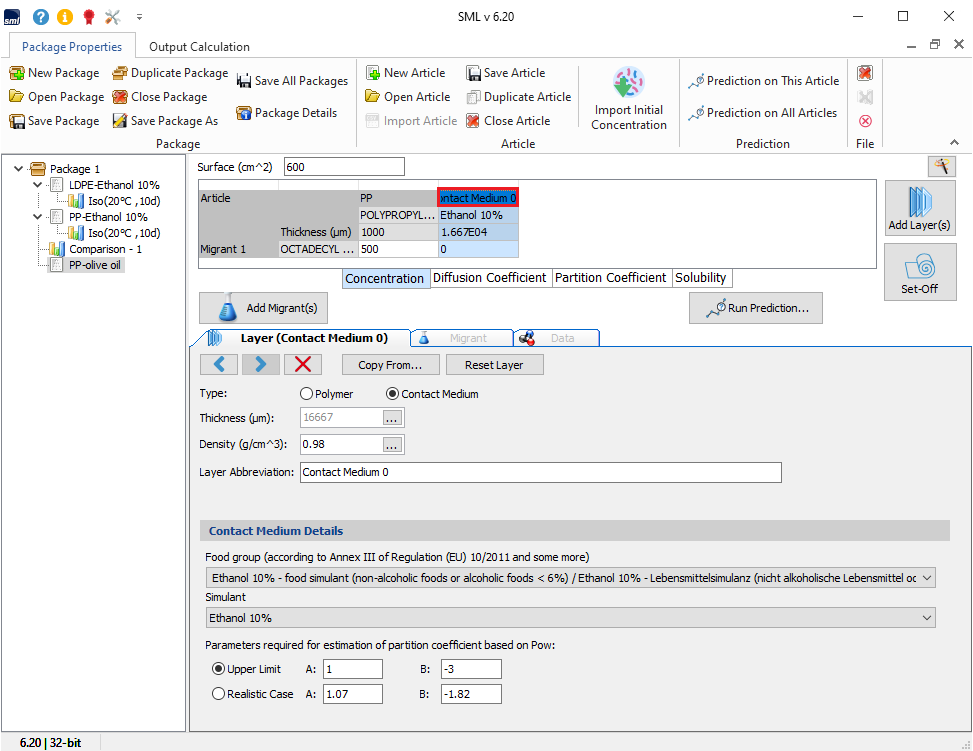

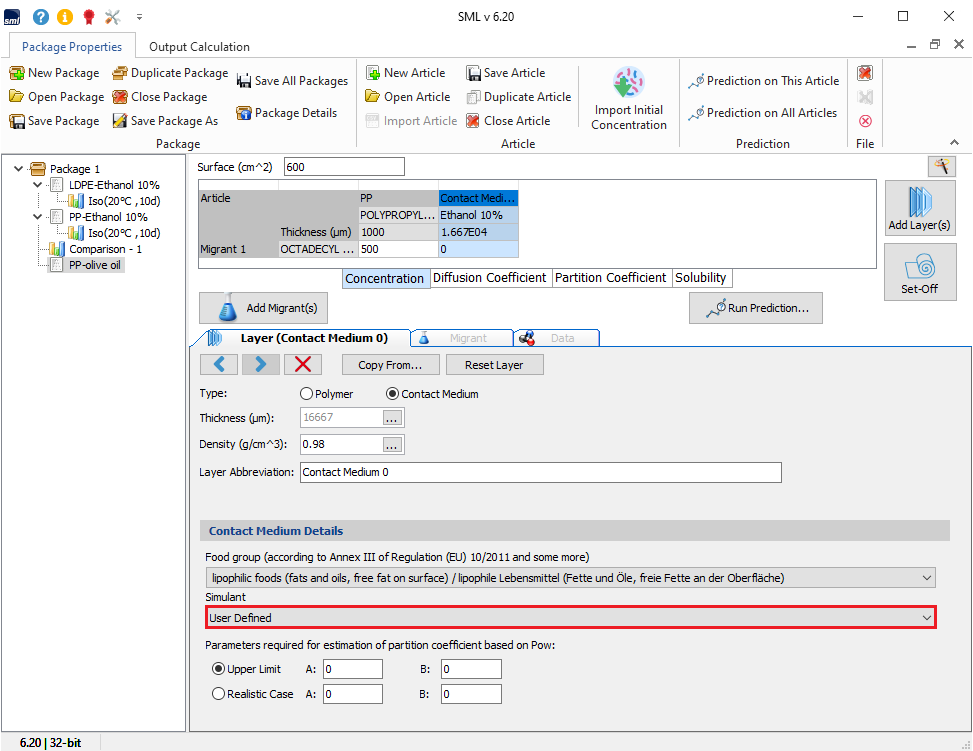

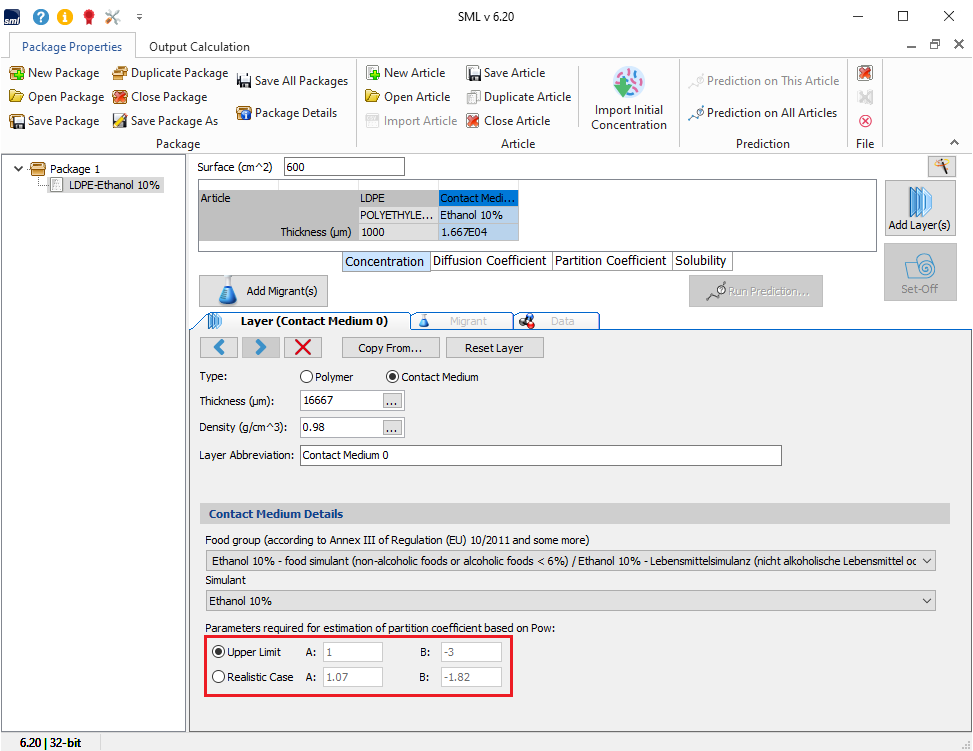

Food group/ Simulant

<i>Fig. 1</i>
<i>Fig. 2</i>

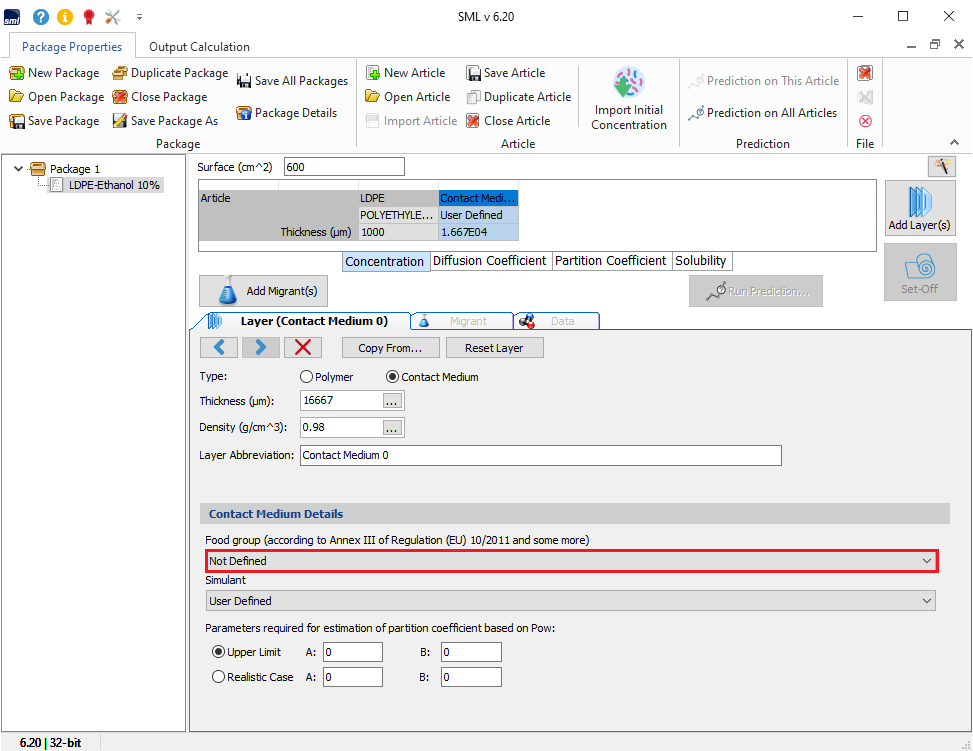

<i>Fig. 3</i>
<i>Fig. 4</i>

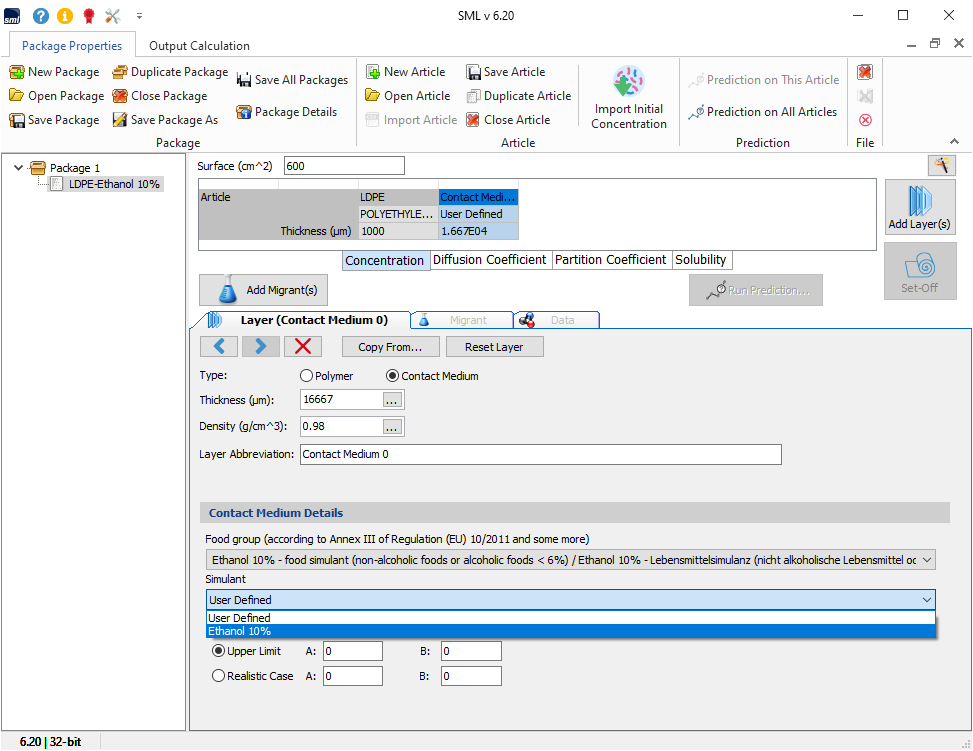

<i>Fig. 5</i>
<i>Fig. 6</i>
previous arrow
next arrow
Fig. 1
&lt;i&gt;Fig. 1&lt;/i&gt;
Fig. 2
&lt;i&gt;Fig. 2&lt;/i&gt;
Fig. 3
&lt;i&gt;Fig. 3&lt;/i&gt;
Fig. 4
&lt;i&gt;Fig. 4&lt;/i&gt;
Fig. 5
&lt;i&gt;Fig. 5&lt;/i&gt;
Fig. 6
&lt;i&gt;Fig. 6&lt;/i&gt;
previous arrowprevious arrow
next arrownext arrow

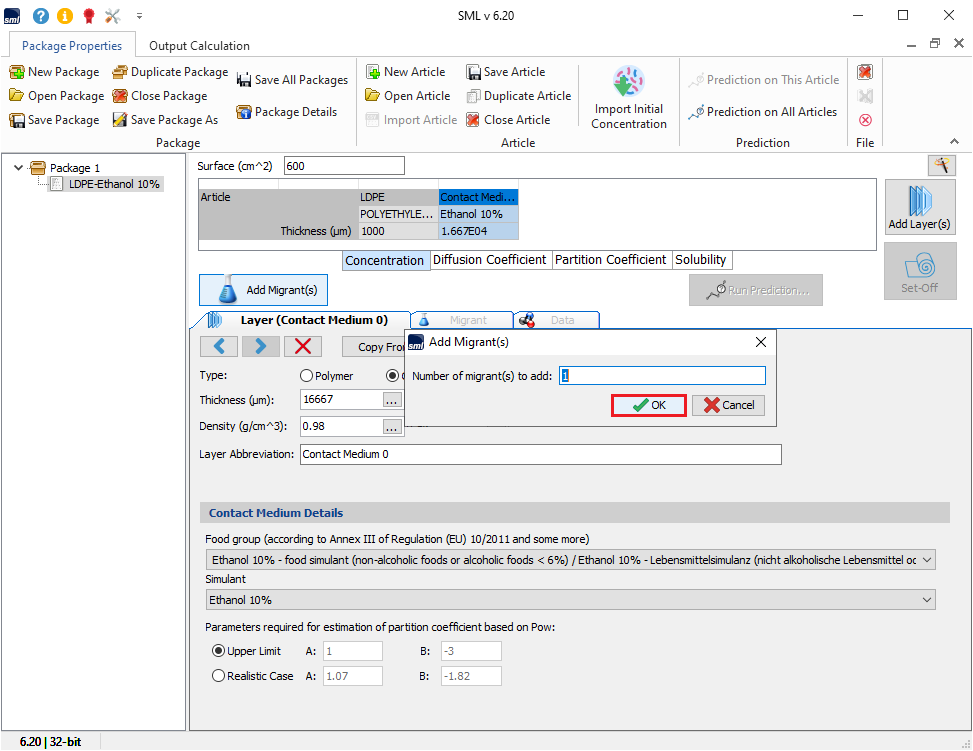

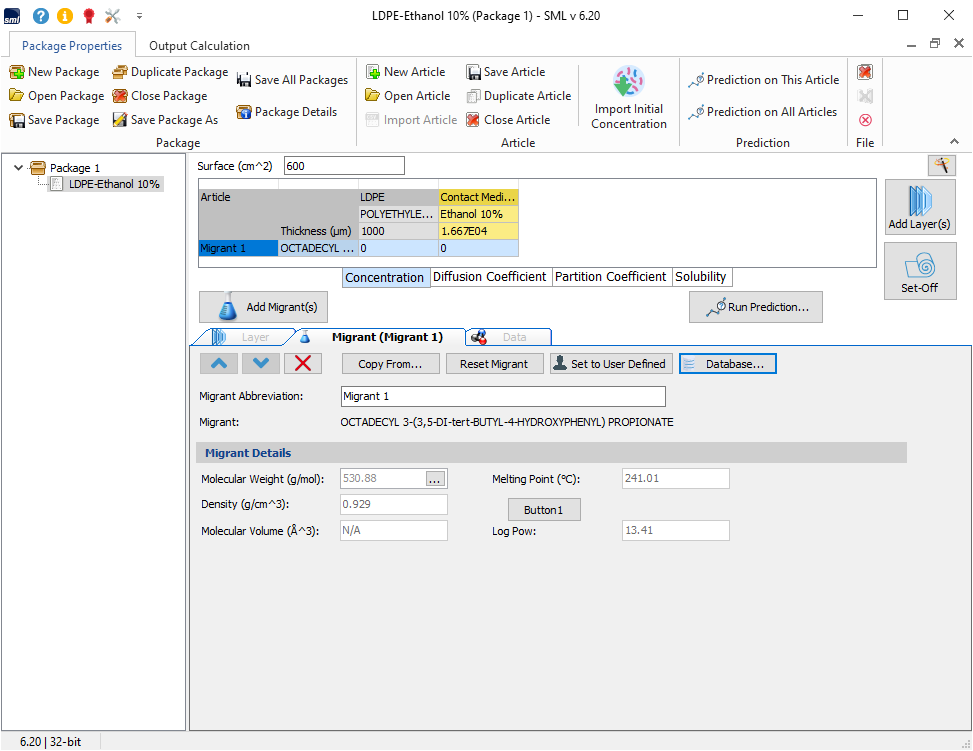

Migrants

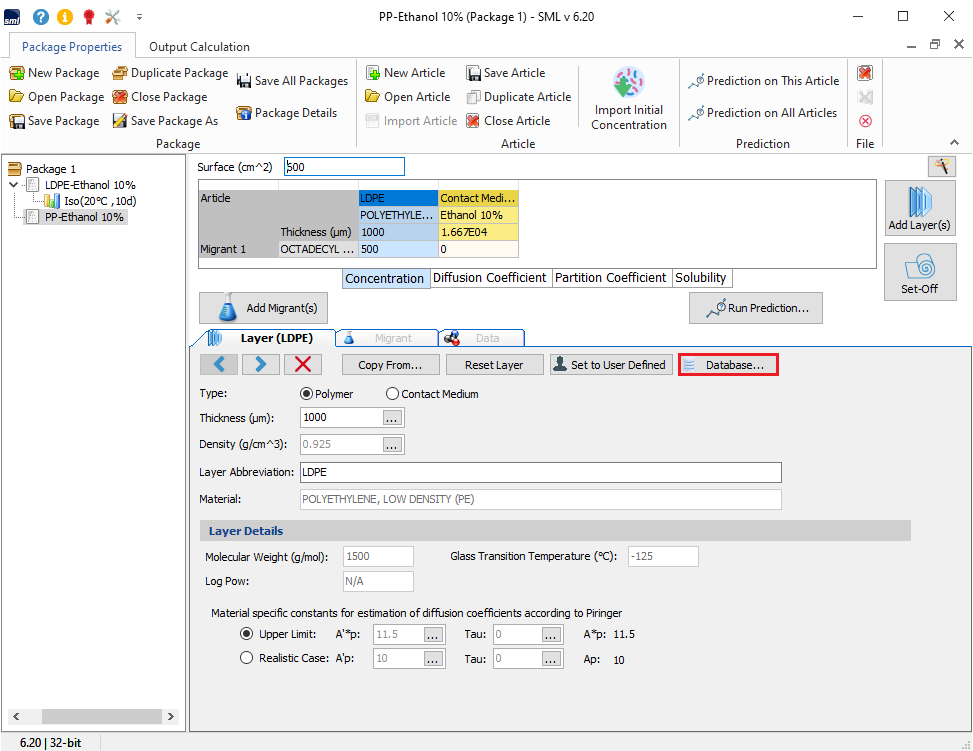

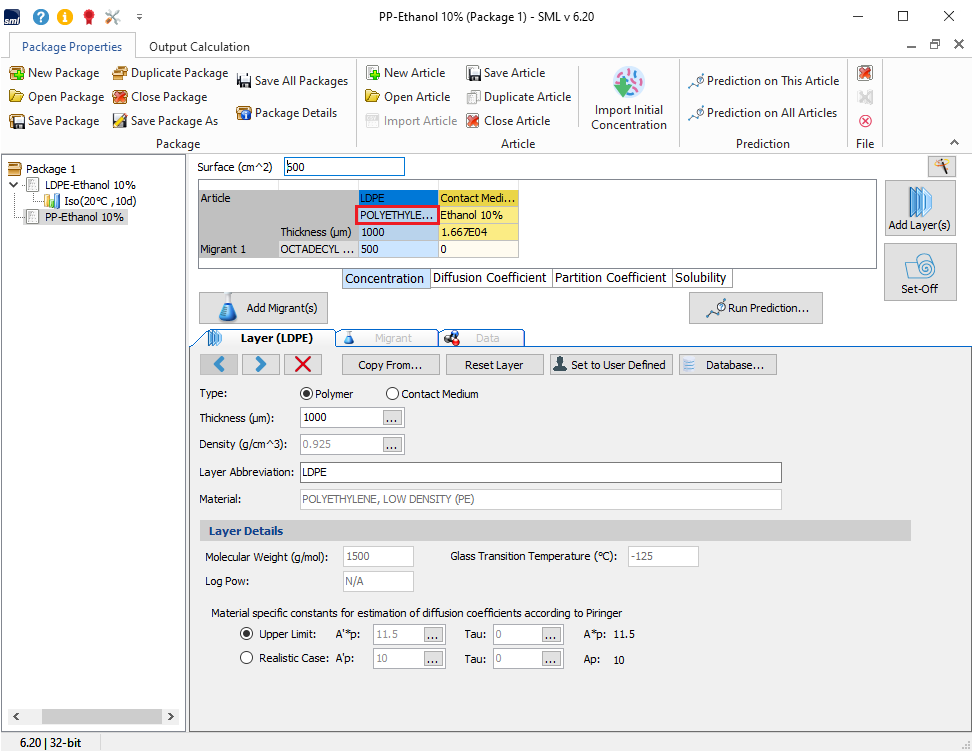

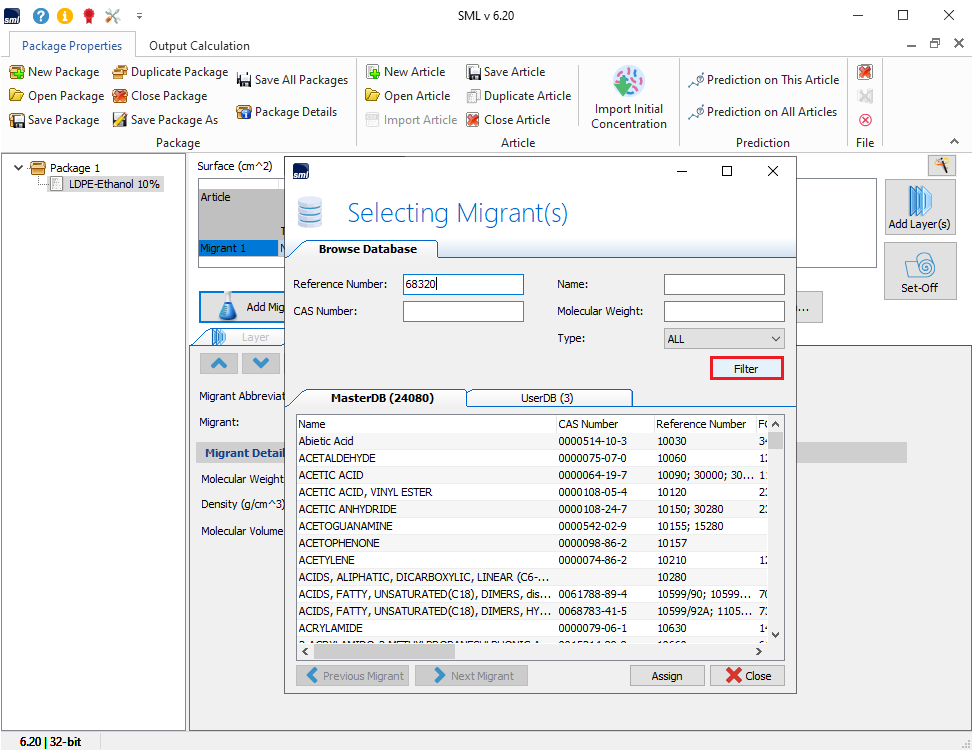

The migrant properties panel allows defining the properties of the currently selected migrant. When the migrant is set as user defined, it is possible to enter manually its properties. Otherwise, if the migrant is loaded from the database, its properties are filled automatically.

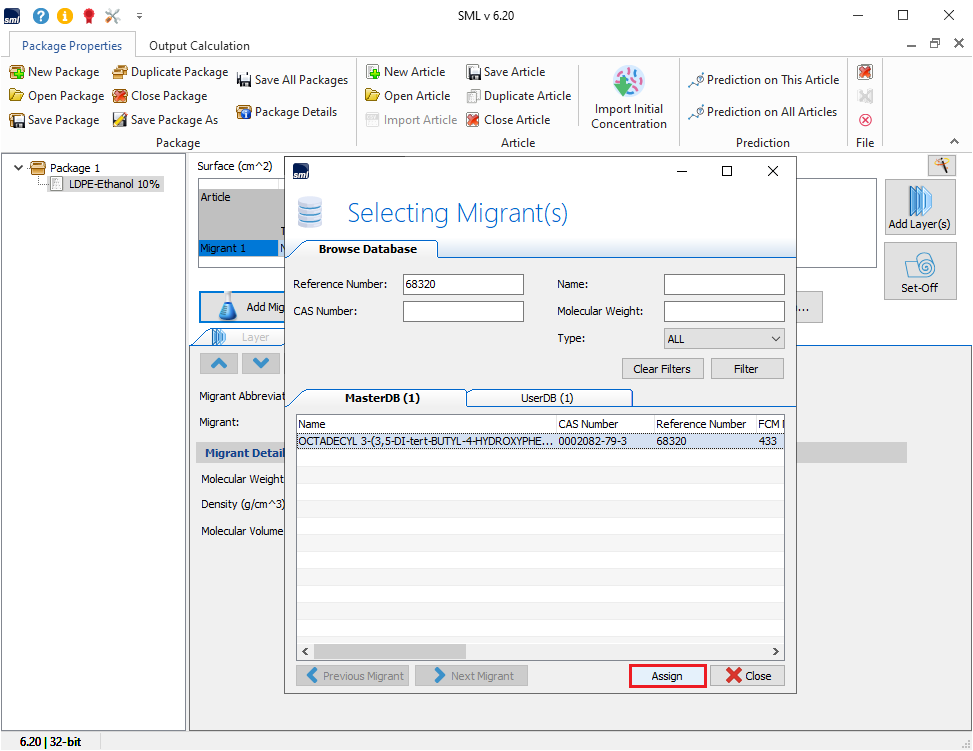

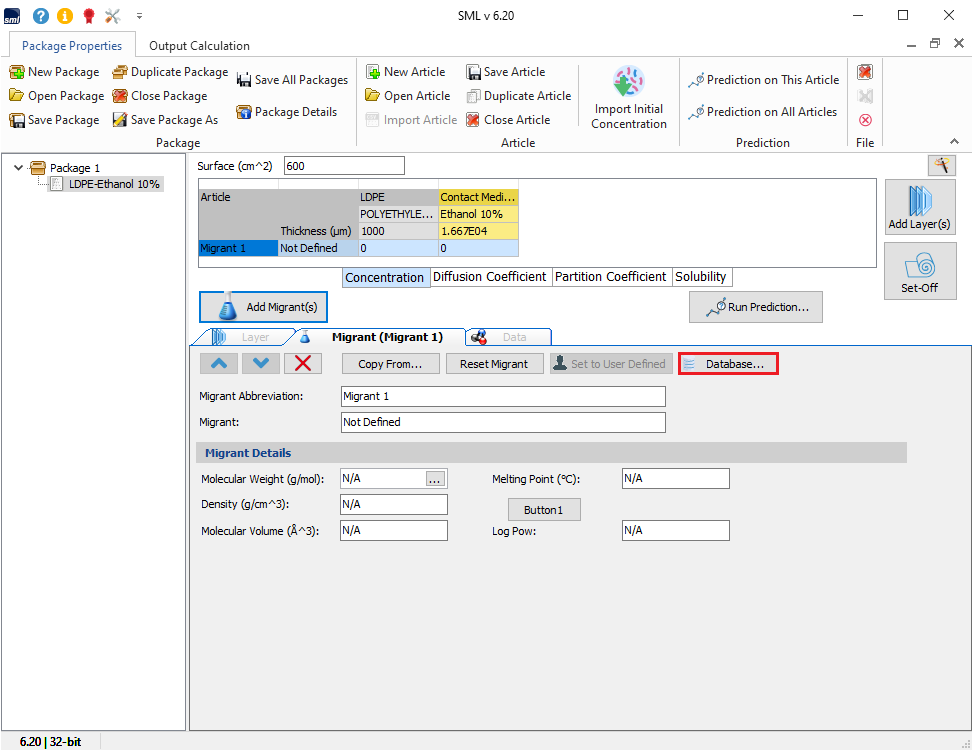

Database allows browsing for known migrants (more than 20’000 chemicals: additives, monomers, photo initiators, pigments, solvents, etc.).

<i>Fig. 1</i>
<i>Fig. 2</i>
<i>Fig. 3</i>
<i>Fig. 4</i>
<i>Fig. 5</i>

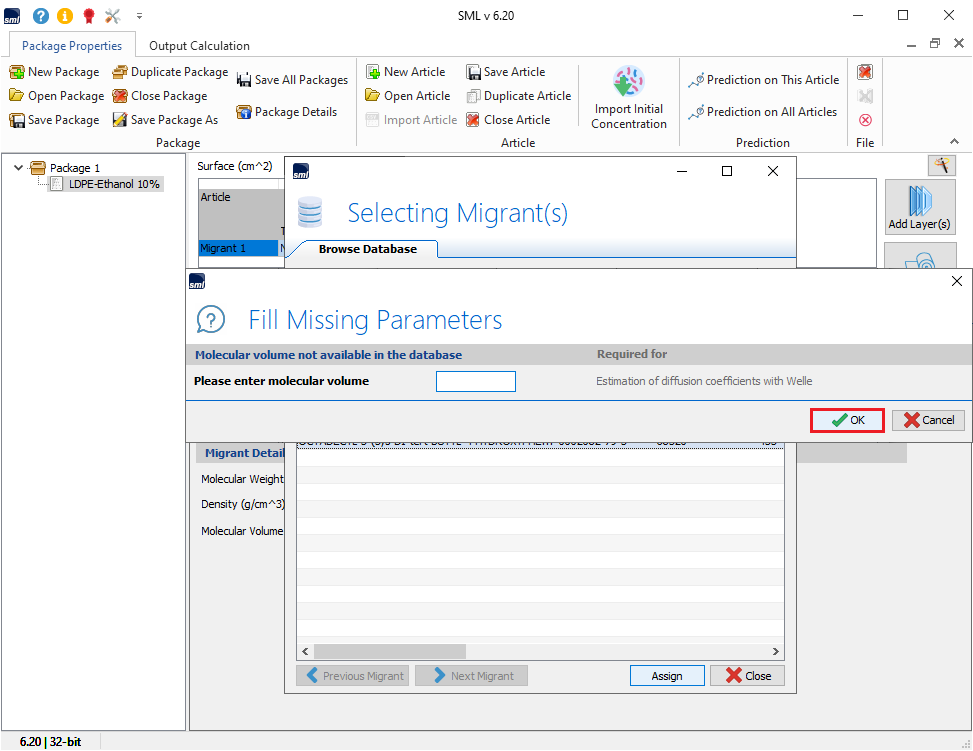

<i>Fig. 6</i>
<i>Fig. 7</i>
previous arrow
next arrow
Fig. 1
&lt;i&gt;Fig. 1&lt;/i&gt;
Fig. 2
&lt;i&gt;Fig. 2&lt;/i&gt;
Fig. 3
&lt;i&gt;Fig. 3&lt;/i&gt;
Fig. 4
&lt;i&gt;Fig. 4&lt;/i&gt;
Fig. 5
&lt;i&gt;Fig. 5&lt;/i&gt;
Fig. 6
&lt;i&gt;Fig. 6&lt;/i&gt;
Fig. 7
&lt;i&gt;Fig. 7&lt;/i&gt;
previous arrowprevious arrow
next arrownext arrow

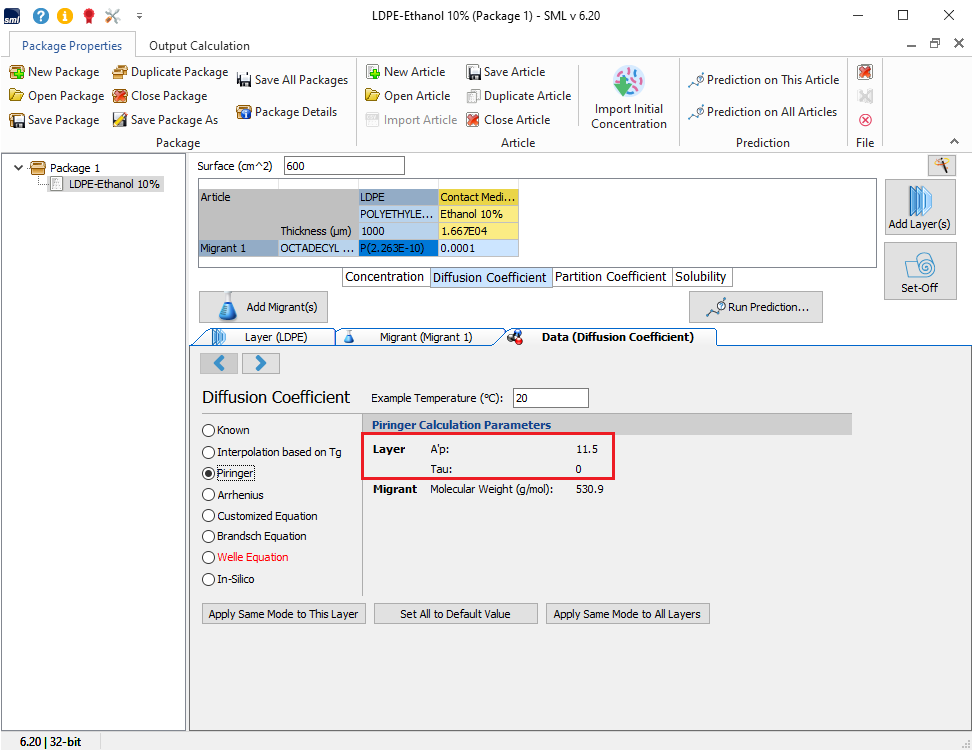

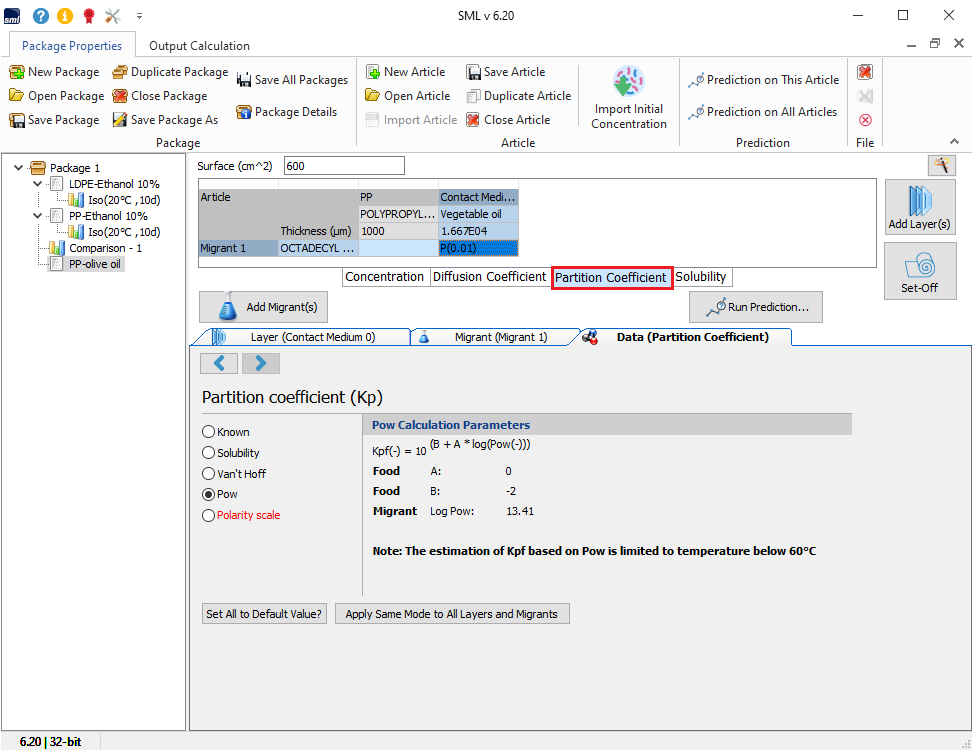

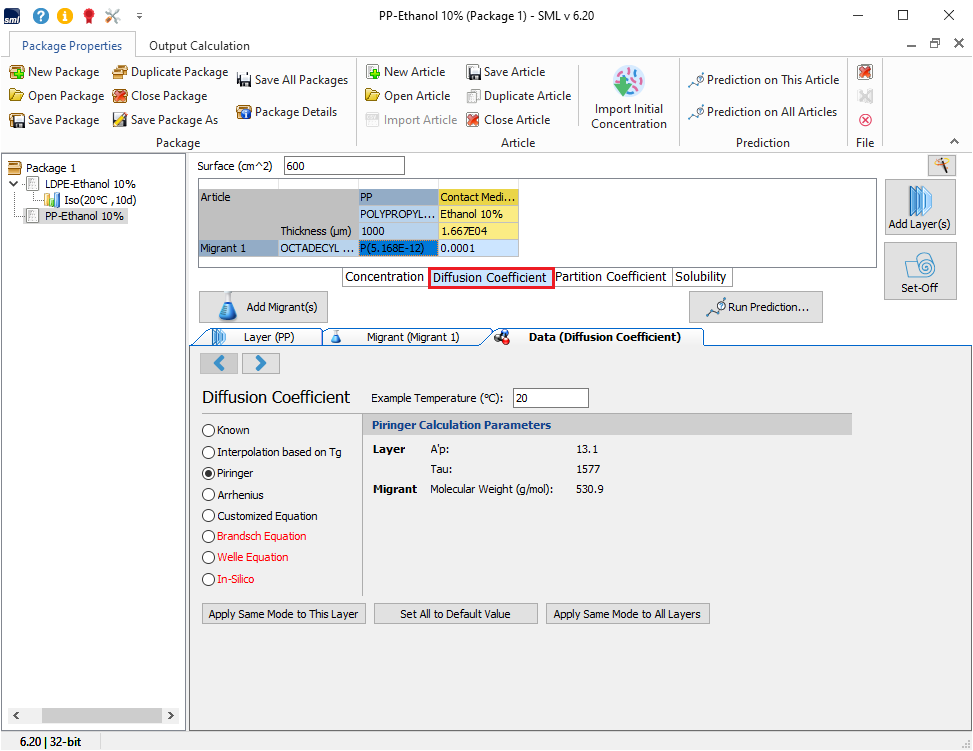

Migrant properties (Concentration, Diffusion and Partition Coefficient)

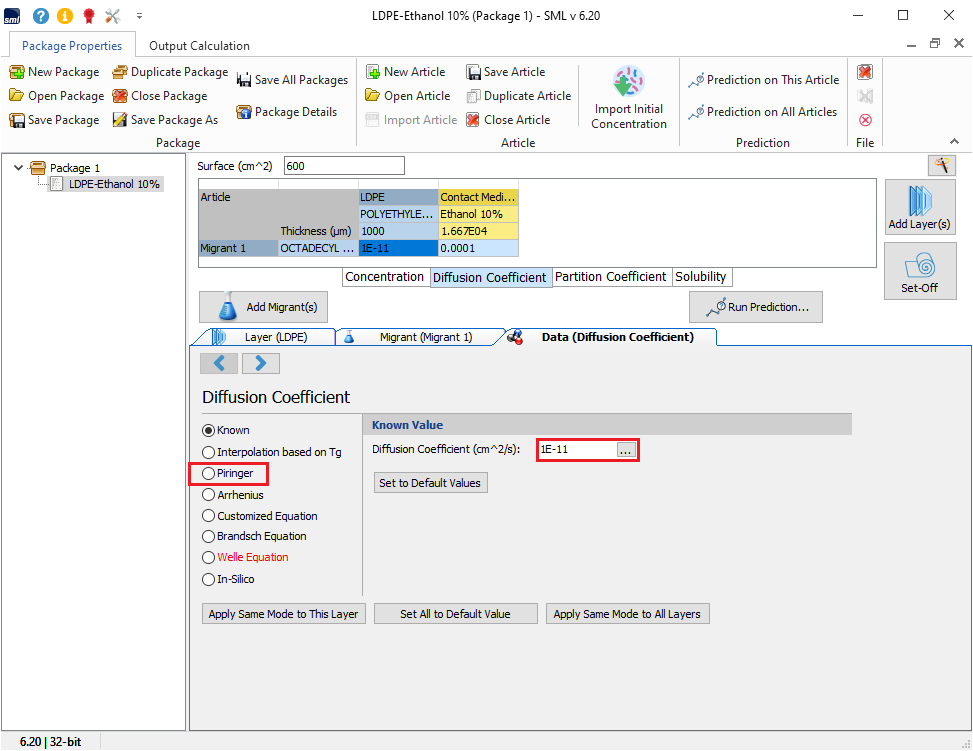

For the prediction of the migration process it is necessary to introduce the key parameters of the migrant:

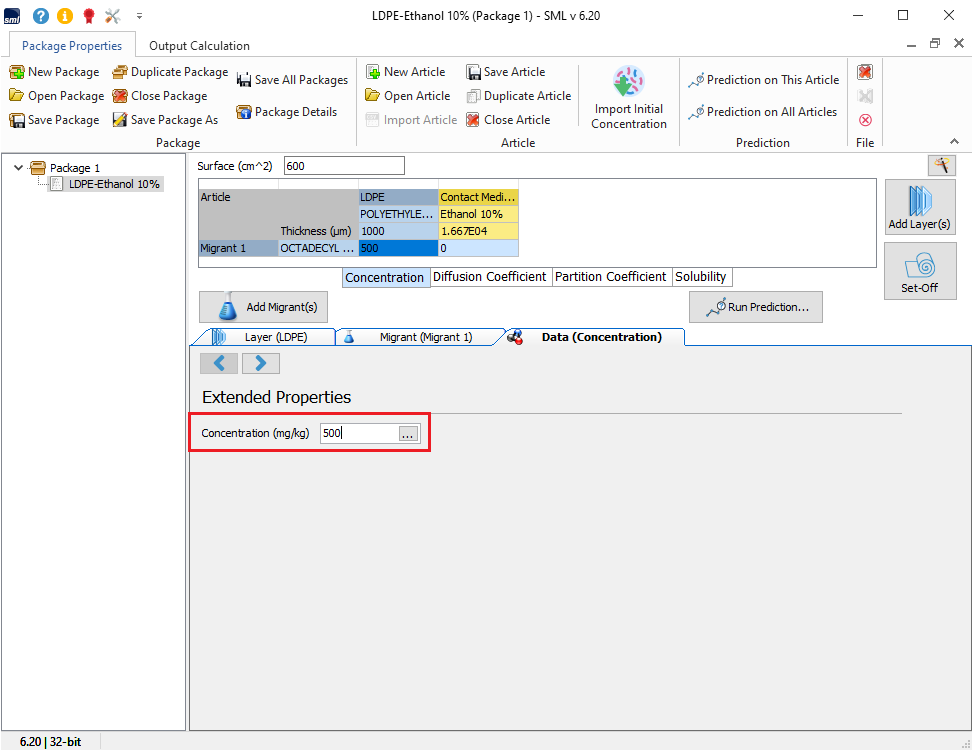

  • The concentration

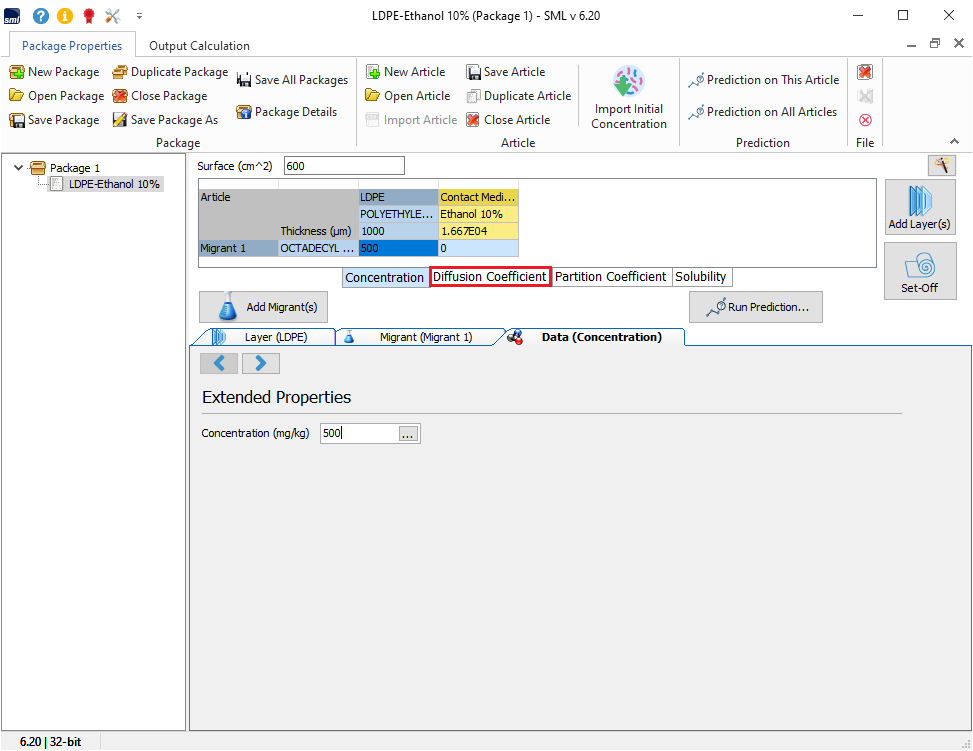

  • The diffusion coefficient

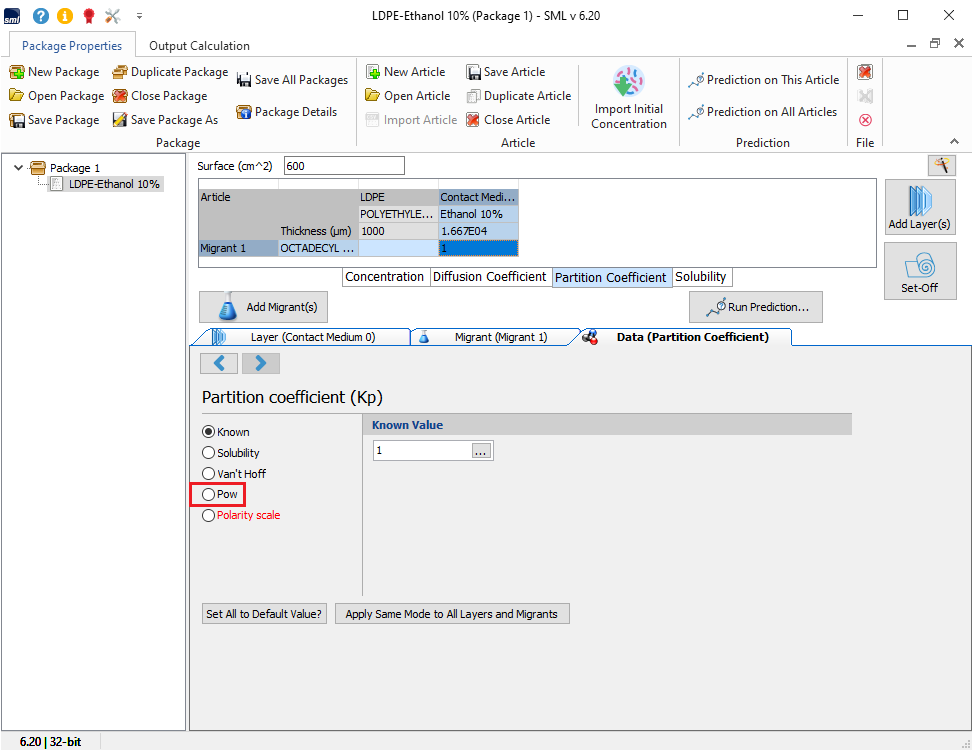

  • The partition coefficient

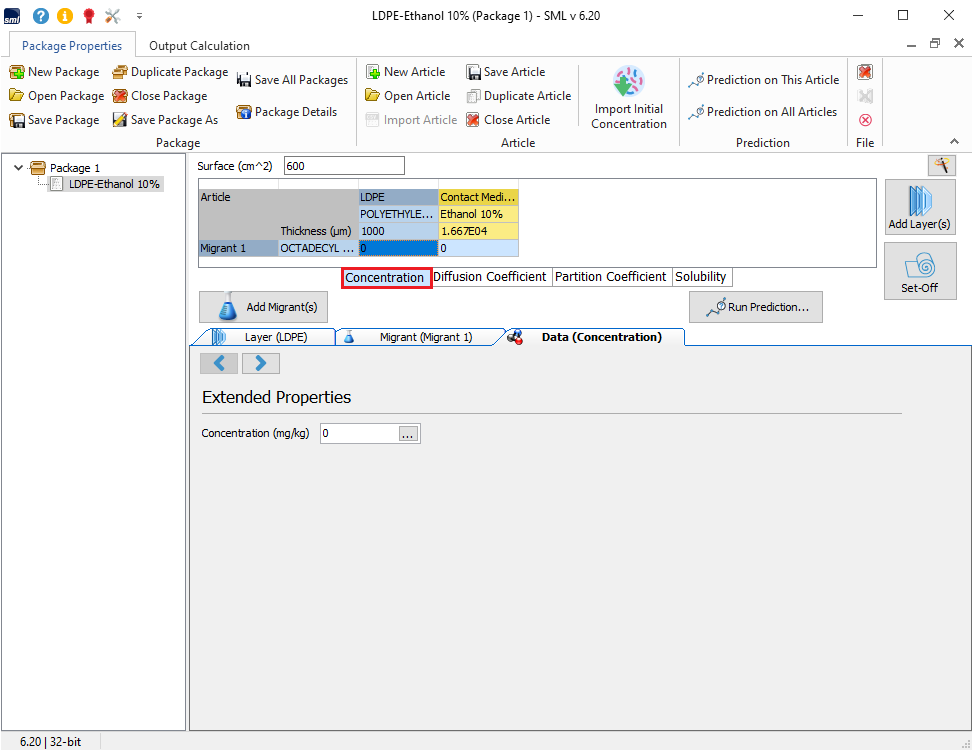

<i>Fig. 1</i>
<i>Fig.2</i>
<i>Fig. 3</i>
<i>Fig. 6</i>
<i>Fig. 7</i>

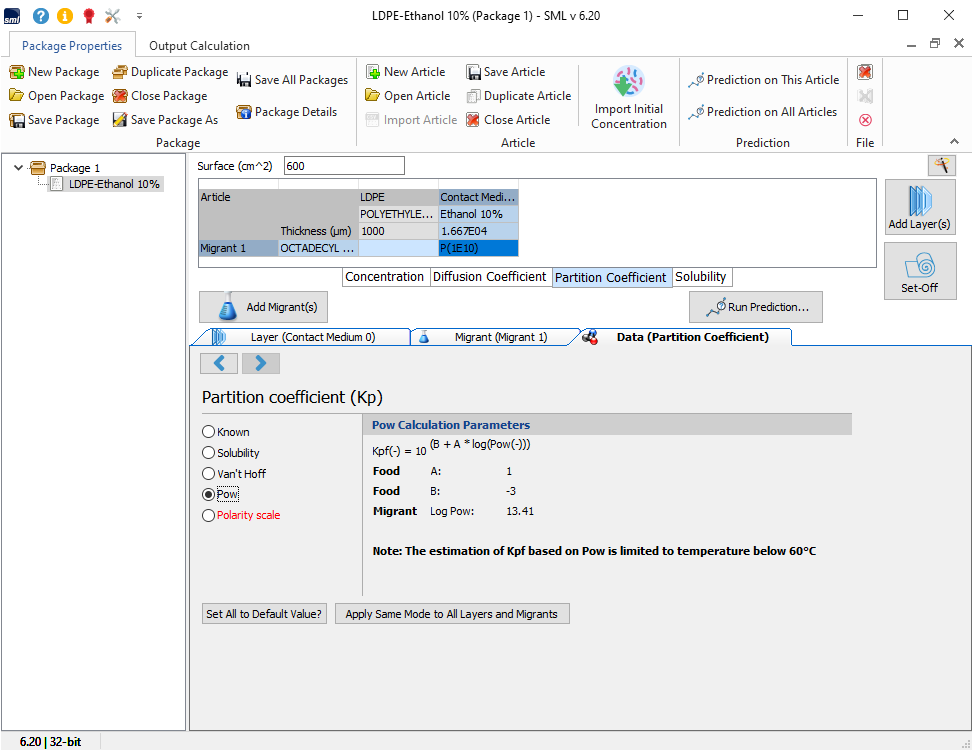

<i>Fig. 8</i>
<i>Fig.4</i>
<i>Fig.5</i>
previous arrow
next arrow
Fig. 1
&lt;i&gt;Fig. 1&lt;/i&gt;
Fig.2
&lt;i&gt;Fig.2&lt;/i&gt;
Fig. 3
&lt;i&gt;Fig. 3&lt;/i&gt;
Fig. 6
&lt;i&gt;Fig. 6&lt;/i&gt;
Fig. 7
&lt;i&gt;Fig. 7&lt;/i&gt;
Fig. 8
&lt;i&gt;Fig. 8&lt;/i&gt;
Fig.4
&lt;i&gt;Fig.4&lt;/i&gt;
Fig.5
&lt;i&gt;Fig.5&lt;/i&gt;
previous arrowprevious arrow
next arrownext arrow

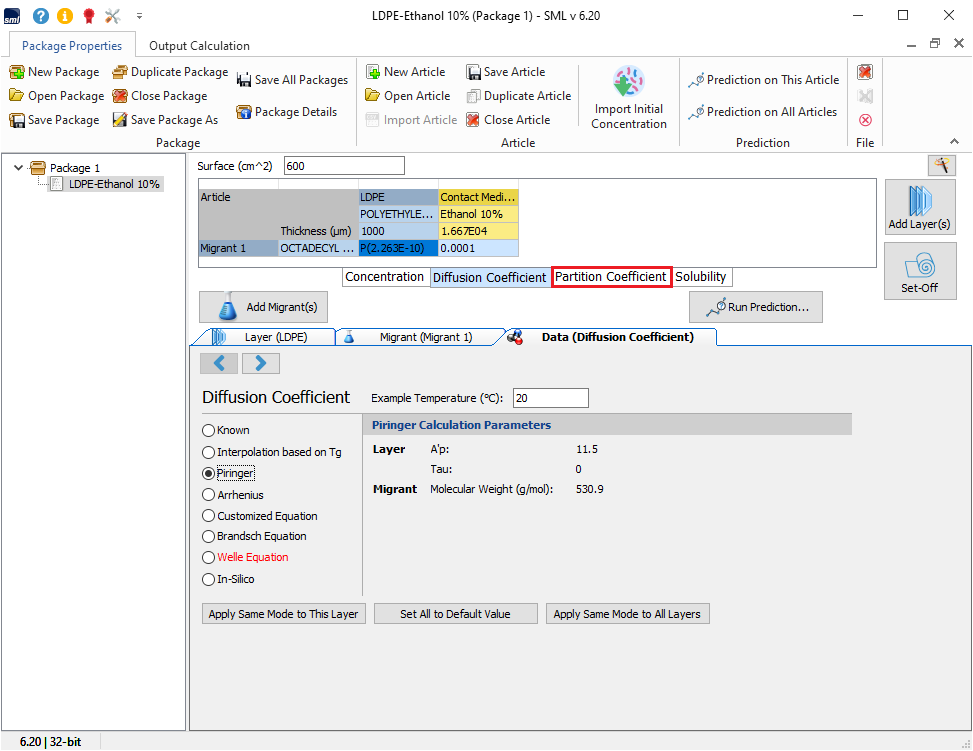

Migration calculation

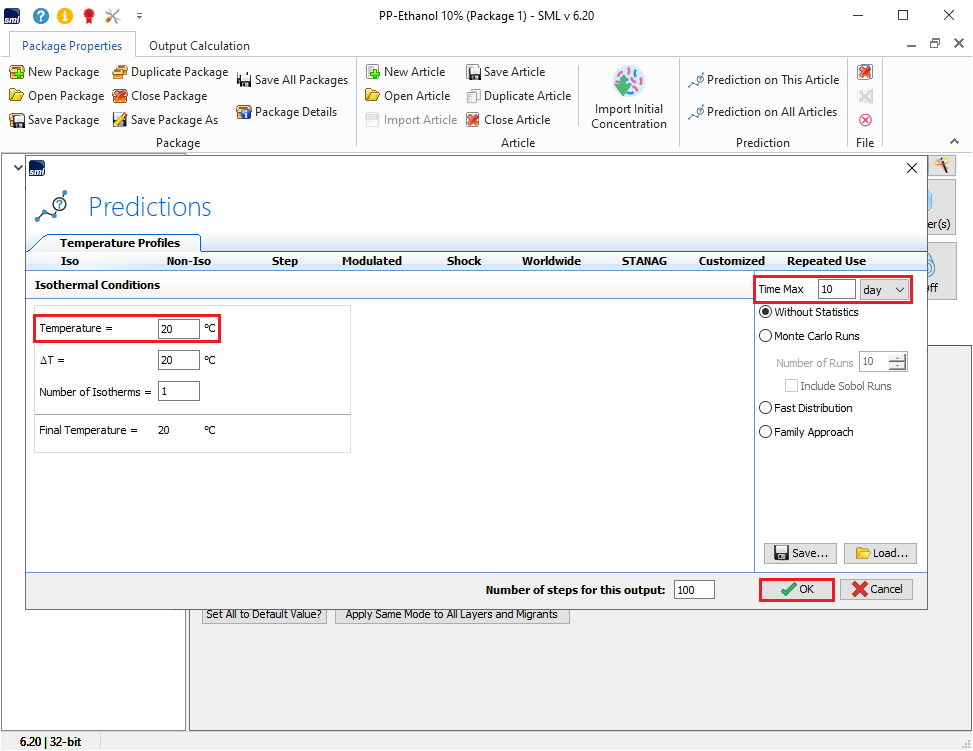

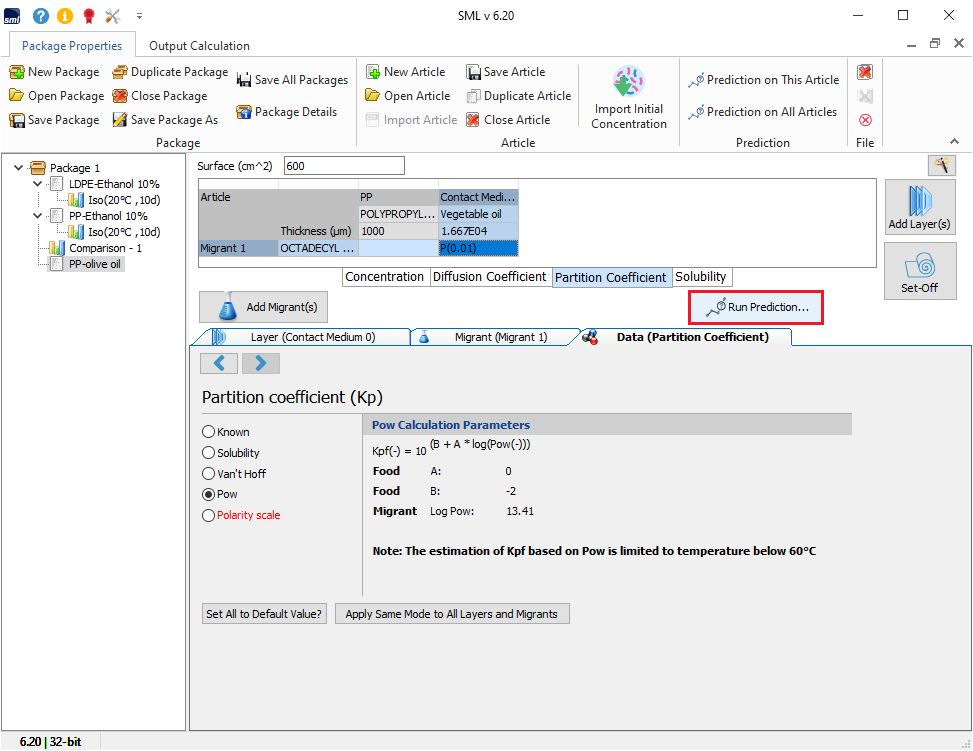

When all properties of an article are introduced, it is possible to proceed with prediction calculations by clicking on the “Run Prediction” button.

The predictions of the migration can be performed for different temperature profiles:

  • Isothermal
  • Non-Isothermal
  • Stepwise
  • Modulated
  • Shock
  • Worldwide
  • STANAG
  • Customized

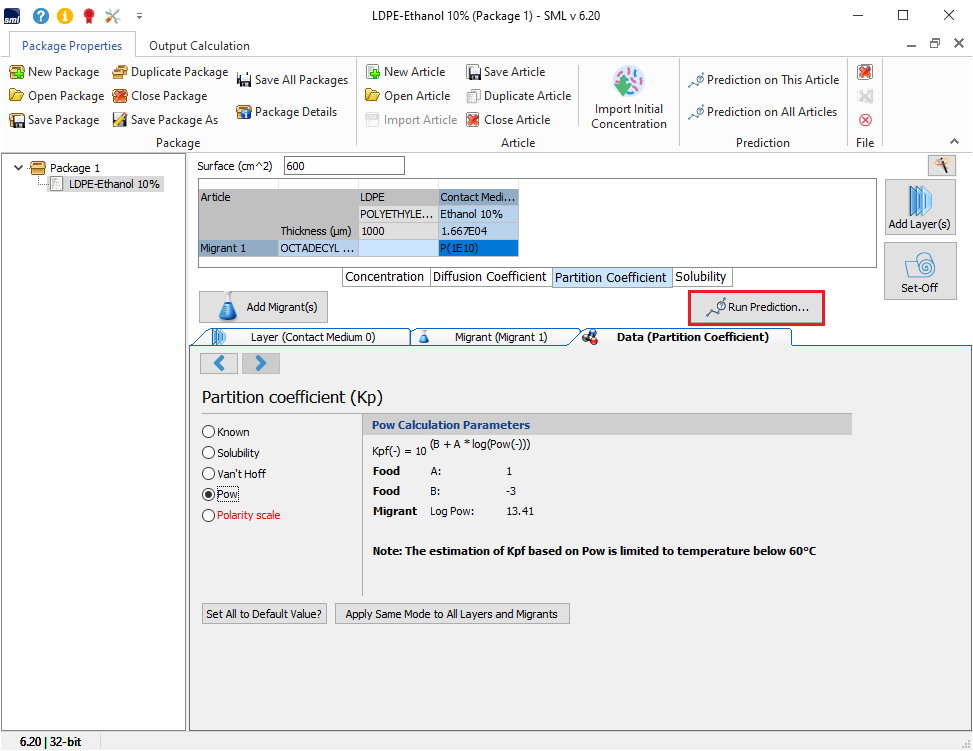

<i>Fig. 1</i>
<i>Fig.2</i>
<i>Fig.3</i>
<i>Fig. 4</i>

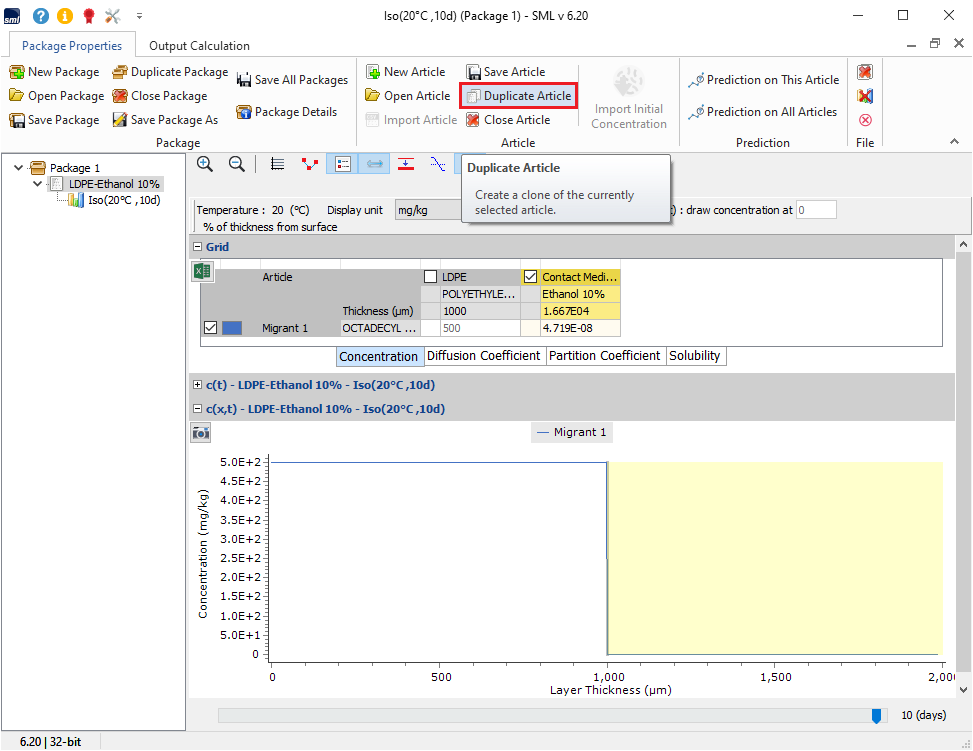

<i>Fig. 5</i>
<i>Fig. 6</i>
<i>Fig. 7</i>
<i>Fig. 8</i>
<i>Fig. 9</i>
<i>Fig. 10</i>
<i>Fig. 11</i>
<i>Fig.12</i>
<i>Fig. 13</i>
<i>Fig. 14</i>

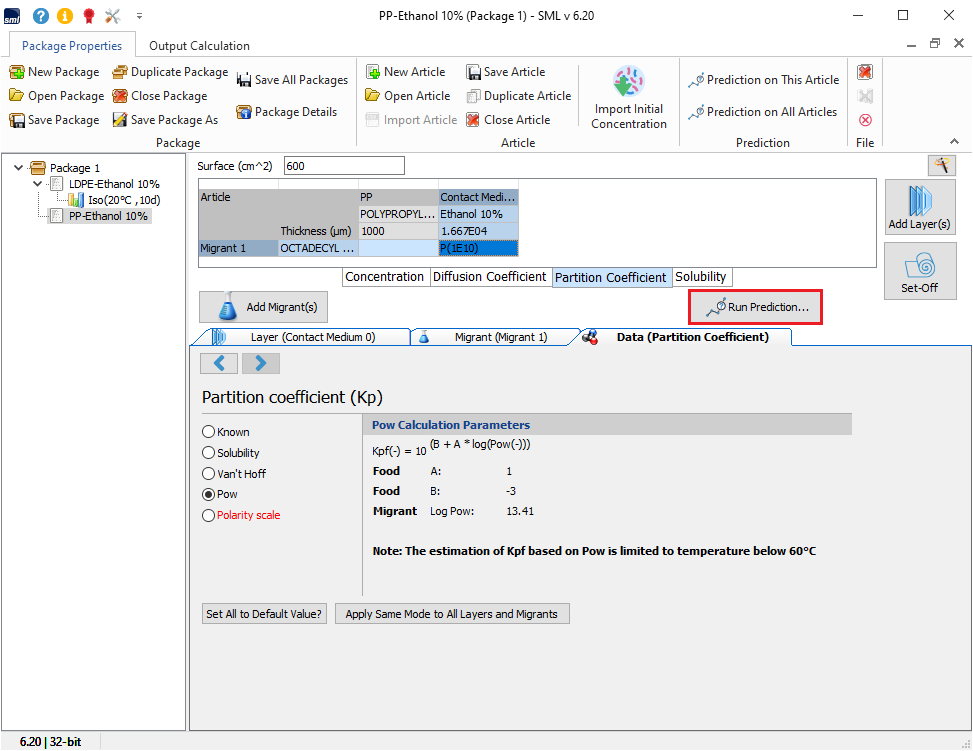

<i>Fig. 15</i>

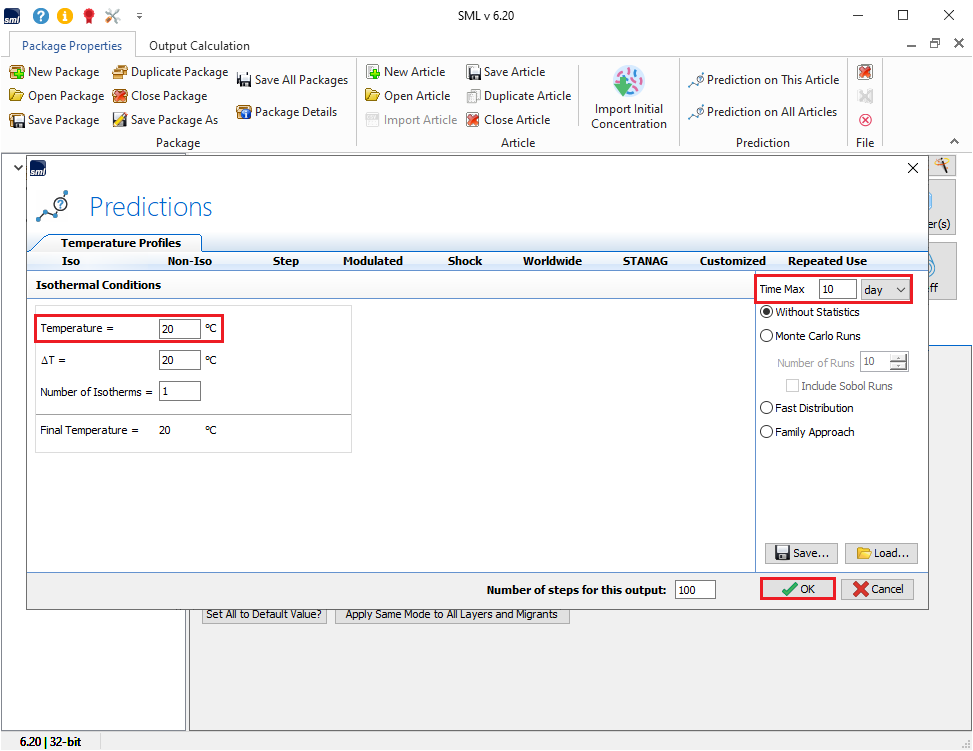

<i>Fig.16</i>

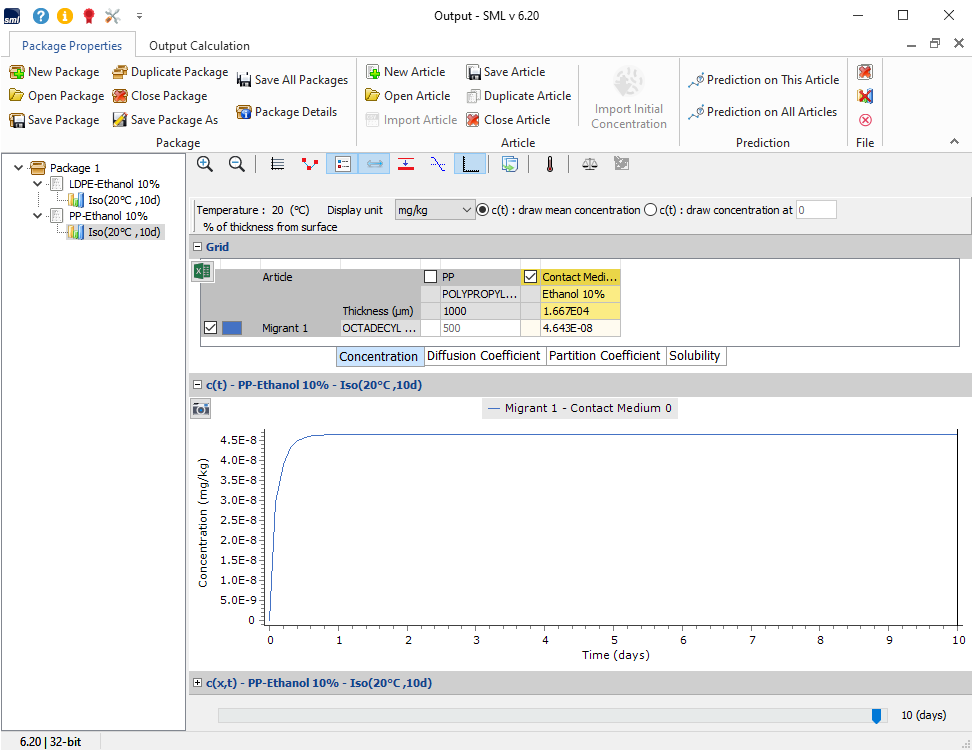

<i>Fig. 17 </i>
<i>Fig. 18</i>
<i>Fig. 19</i>

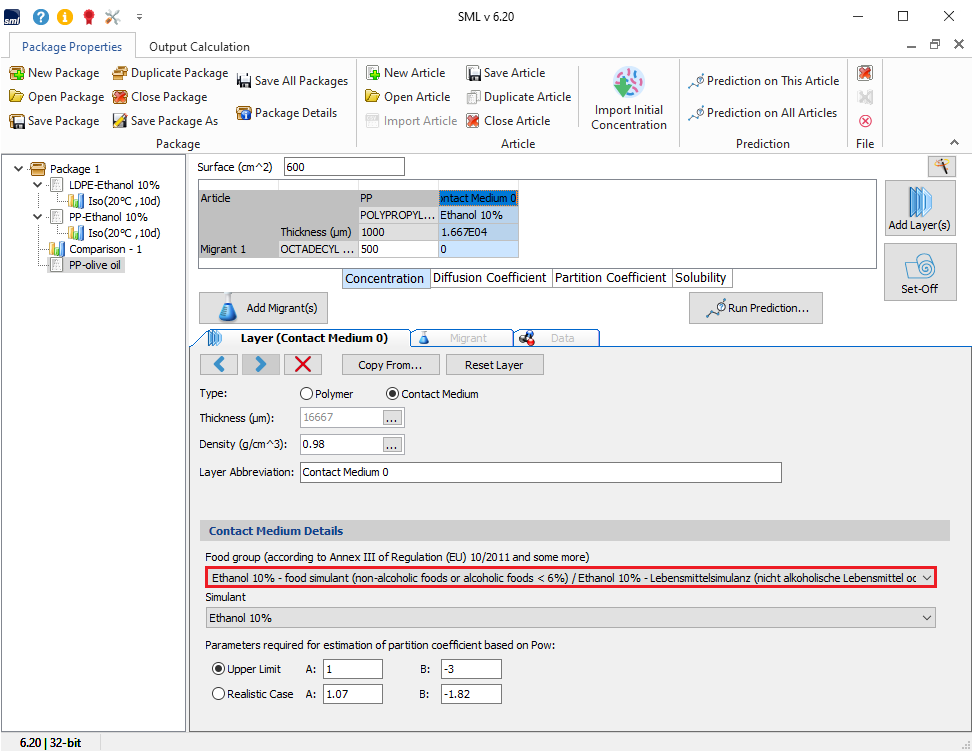

<i>Fig. 20</i>
<i>Fig. 21</i>
<i>Fig. 22</i>

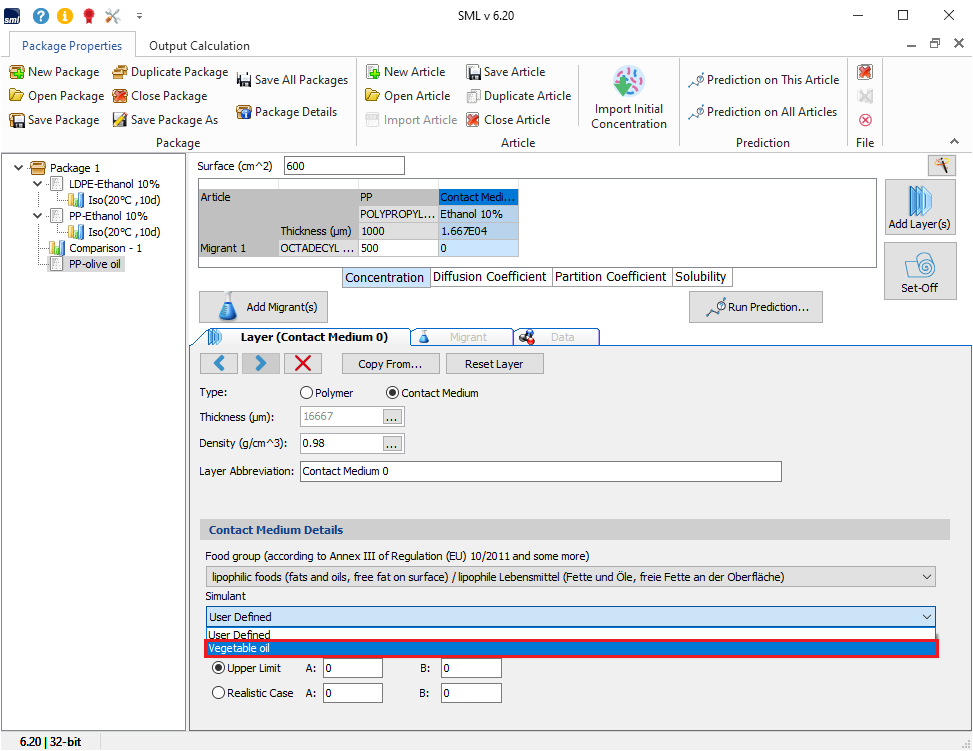

<i>Fig.23</i>
<i>Fig. 24</i>
<i>Fig. 25</i>
<i>Fig. 26</i>
<i>Fig.27</i>

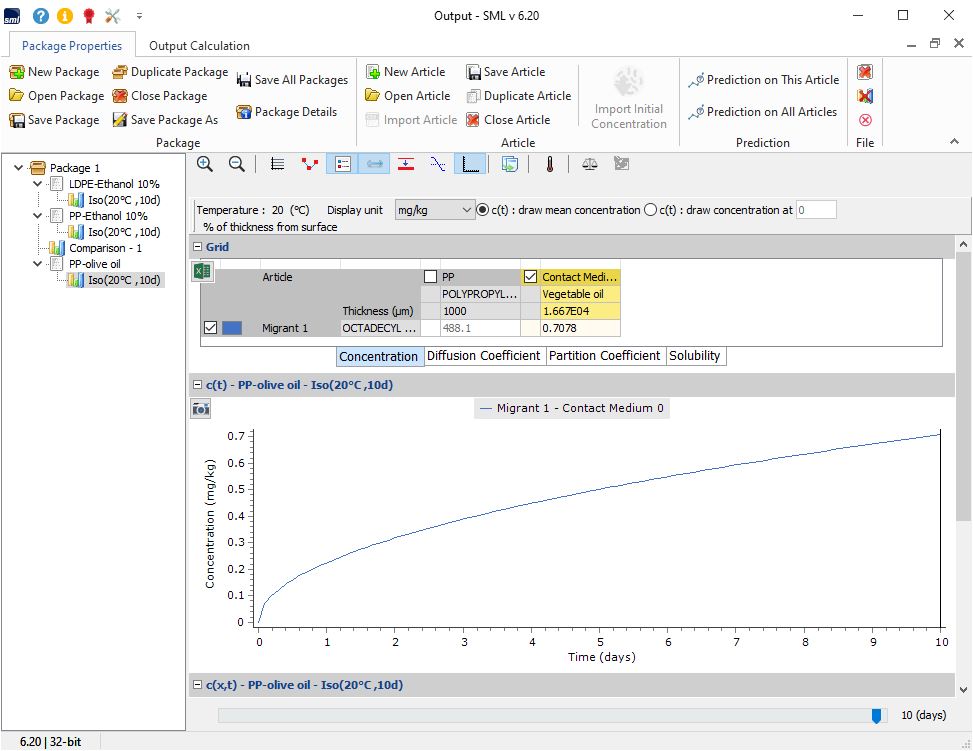

<i>Fig. 28</i>
<i>Fig. 29</i>
previous arrow
next arrow
Fig. 1
&lt;i&gt;Fig. 1&lt;/i&gt;
Fig.2
&lt;i&gt;Fig.2&lt;/i&gt;
Fig.3
&lt;i&gt;Fig.3&lt;/i&gt;
Fig. 4
&lt;i&gt;Fig. 4&lt;/i&gt;
Fig. 5
&lt;i&gt;Fig. 5&lt;/i&gt;
Fig. 6
&lt;i&gt;Fig. 6&lt;/i&gt;
Fig. 7
&lt;i&gt;Fig. 7&lt;/i&gt;
Fig. 8
&lt;i&gt;Fig. 8&lt;/i&gt;
Fig. 9
&lt;i&gt;Fig. 9&lt;/i&gt;
Fig. 10
&lt;i&gt;Fig. 10&lt;/i&gt;
Fig. 11
&lt;i&gt;Fig. 11&lt;/i&gt;
Fig.12
&lt;i&gt;Fig.12&lt;/i&gt;
Fig. 13
&lt;i&gt;Fig. 13&lt;/i&gt;
Fig. 14
&lt;i&gt;Fig. 14&lt;/i&gt;
Fig. 15
&lt;i&gt;Fig. 15&lt;/i&gt;
Fig.16
&lt;i&gt;Fig.16&lt;/i&gt;
Fig. 17
&lt;i&gt;Fig. 17 &lt;/i&gt;
Fig. 18
&lt;i&gt;Fig. 18&lt;/i&gt;
Fig. 19
&lt;i&gt;Fig. 19&lt;/i&gt;
Fig. 20
&lt;i&gt;Fig. 20&lt;/i&gt;
Fig. 21
&lt;i&gt;Fig. 21&lt;/i&gt;
Fig. 22
&lt;i&gt;Fig. 22&lt;/i&gt;
Fig.23
&lt;i&gt;Fig.23&lt;/i&gt;
Fig. 24
&lt;i&gt;Fig. 24&lt;/i&gt;
Fig. 25
&lt;i&gt;Fig. 25&lt;/i&gt;
Fig. 26
&lt;i&gt;Fig. 26&lt;/i&gt;
Fig.27
&lt;i&gt;Fig.27&lt;/i&gt;
Fig. 28
&lt;i&gt;Fig. 28&lt;/i&gt;
Fig. 29
&lt;i&gt;Fig. 29&lt;/i&gt;
previous arrowprevious arrow
next arrownext arrow

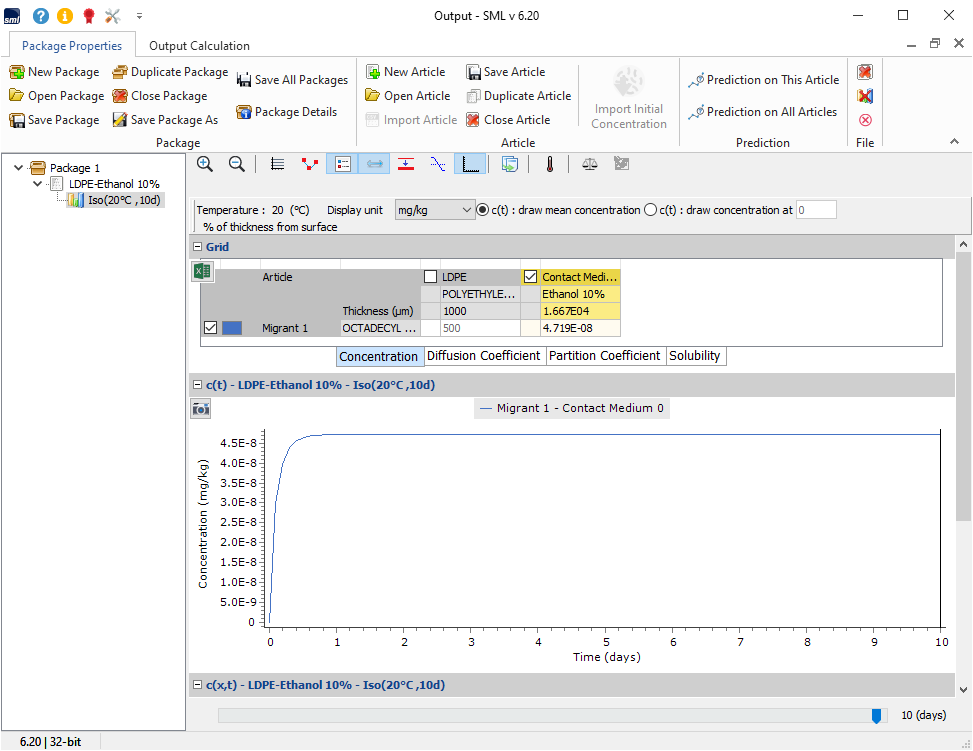

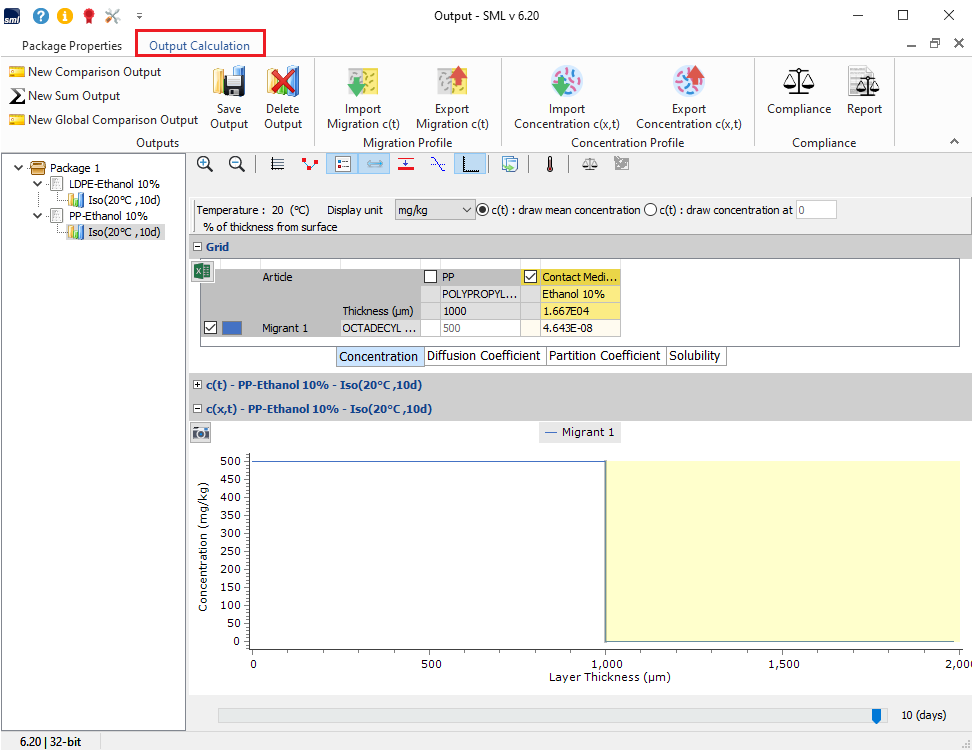

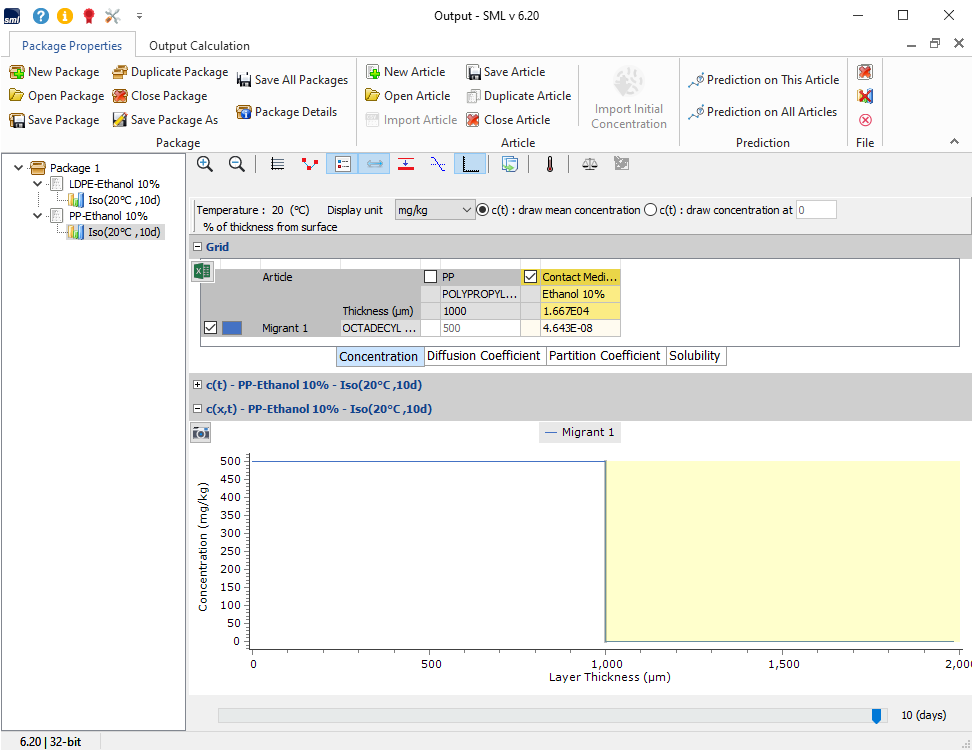

Results/Compliance certificate

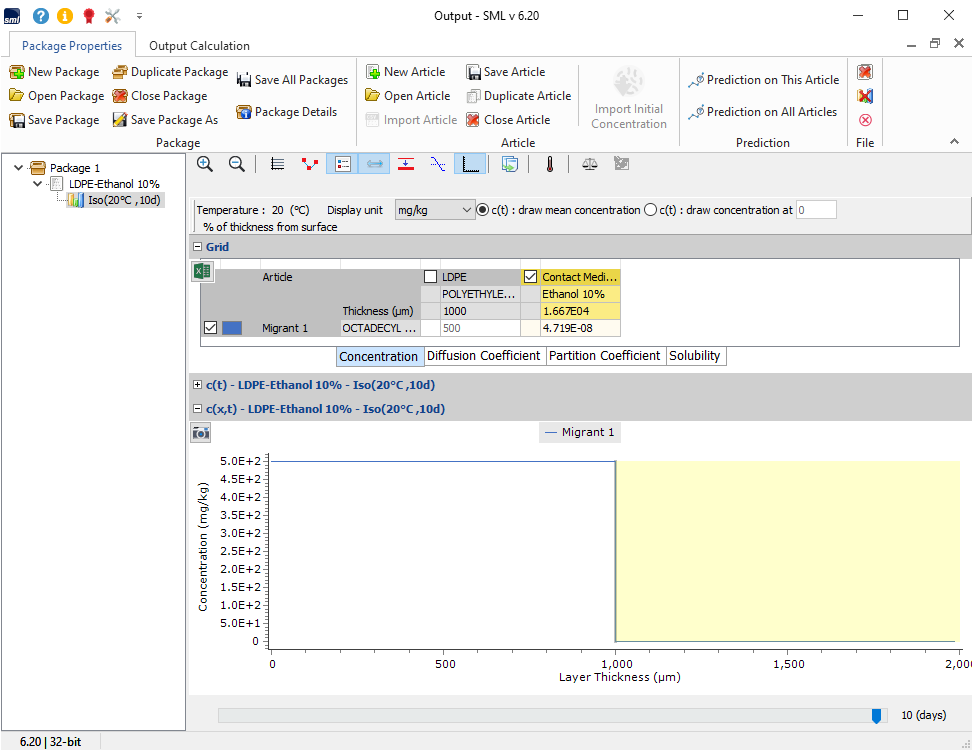

The output window shows the results of the prediction calculations. Following results may be displayed:

  • The results grid

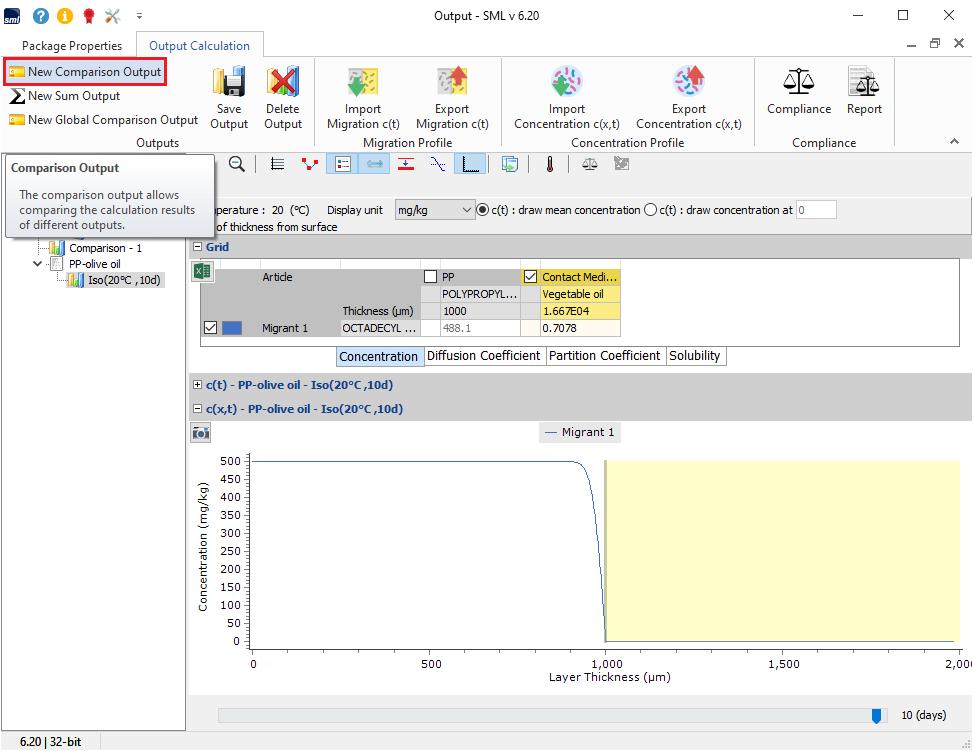

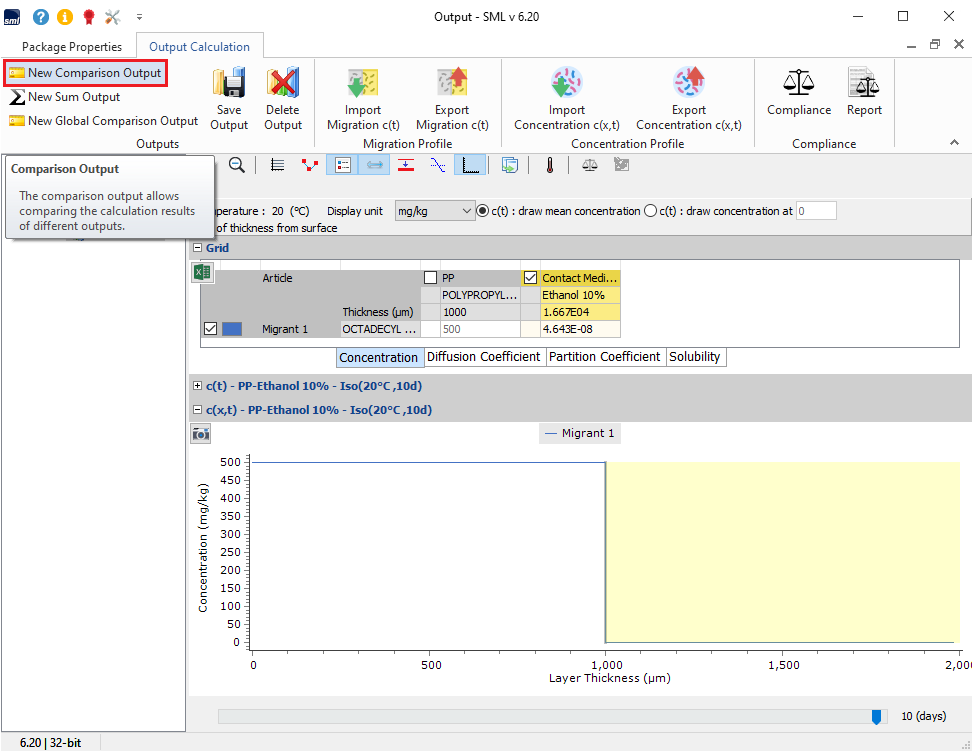

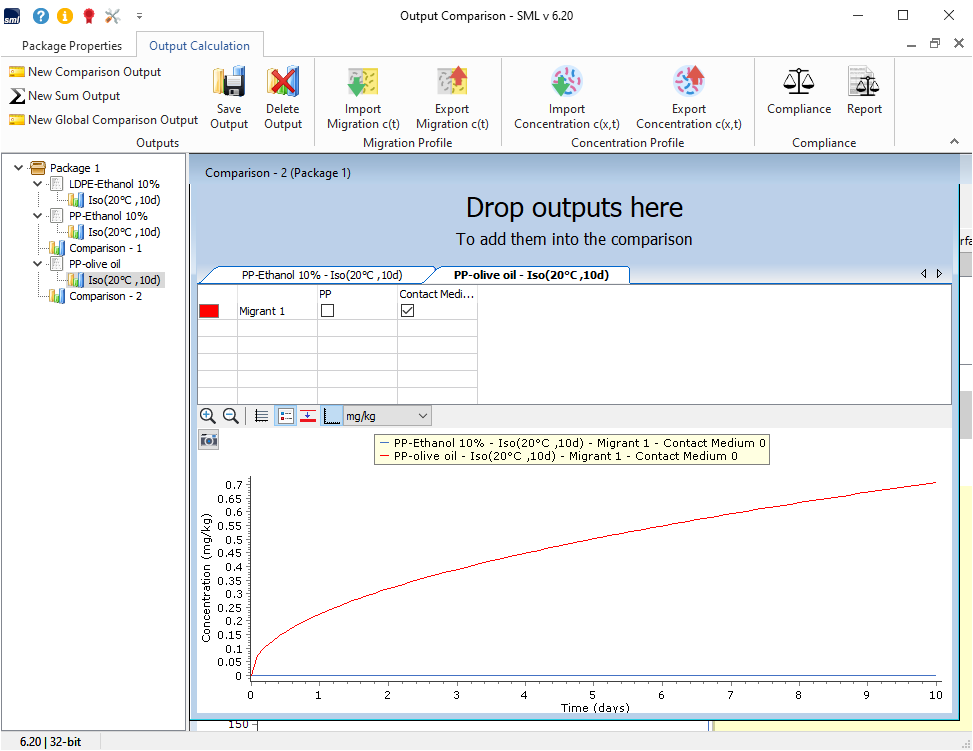

  • The c(t) chart
  • The c(x, t) chart

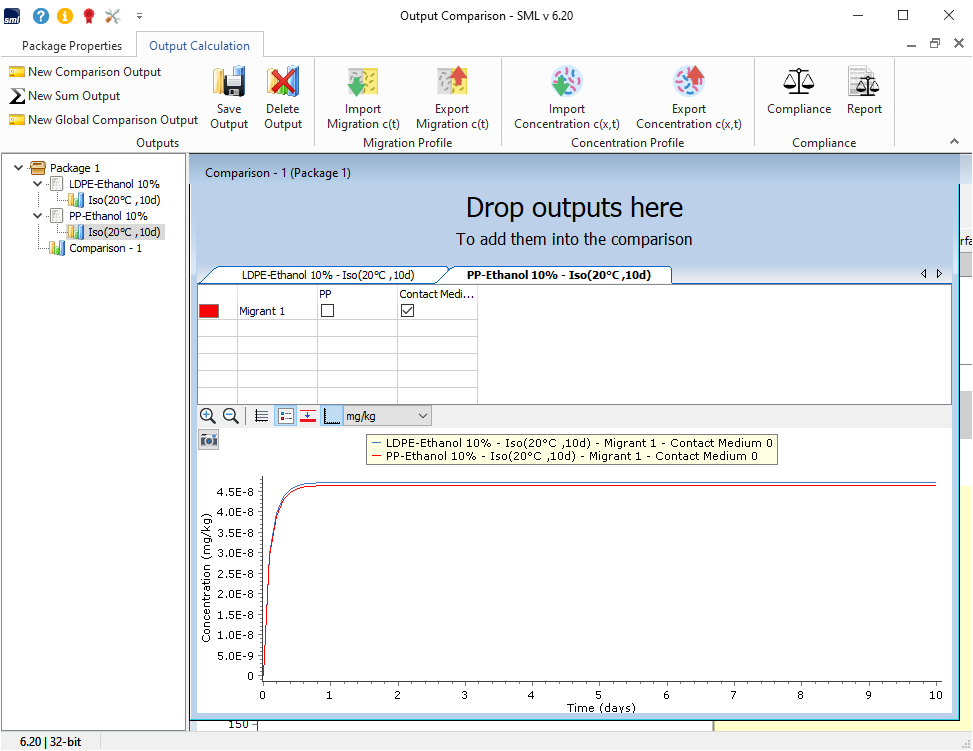

  • Comparison Output
  • Sum Output

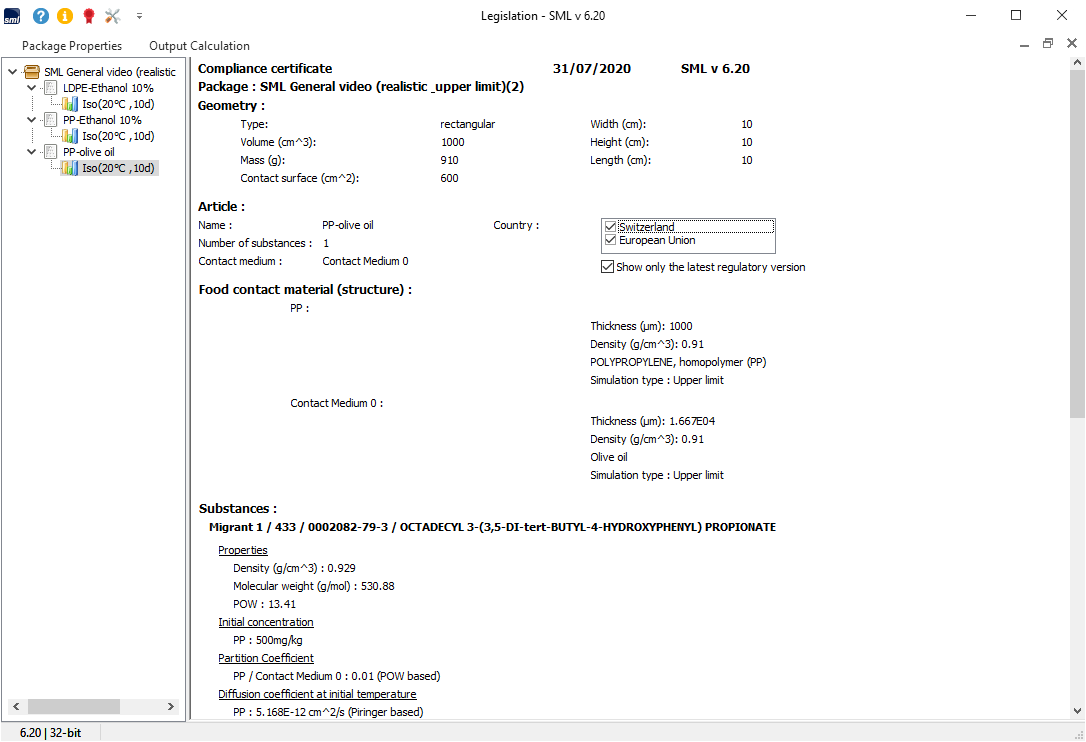

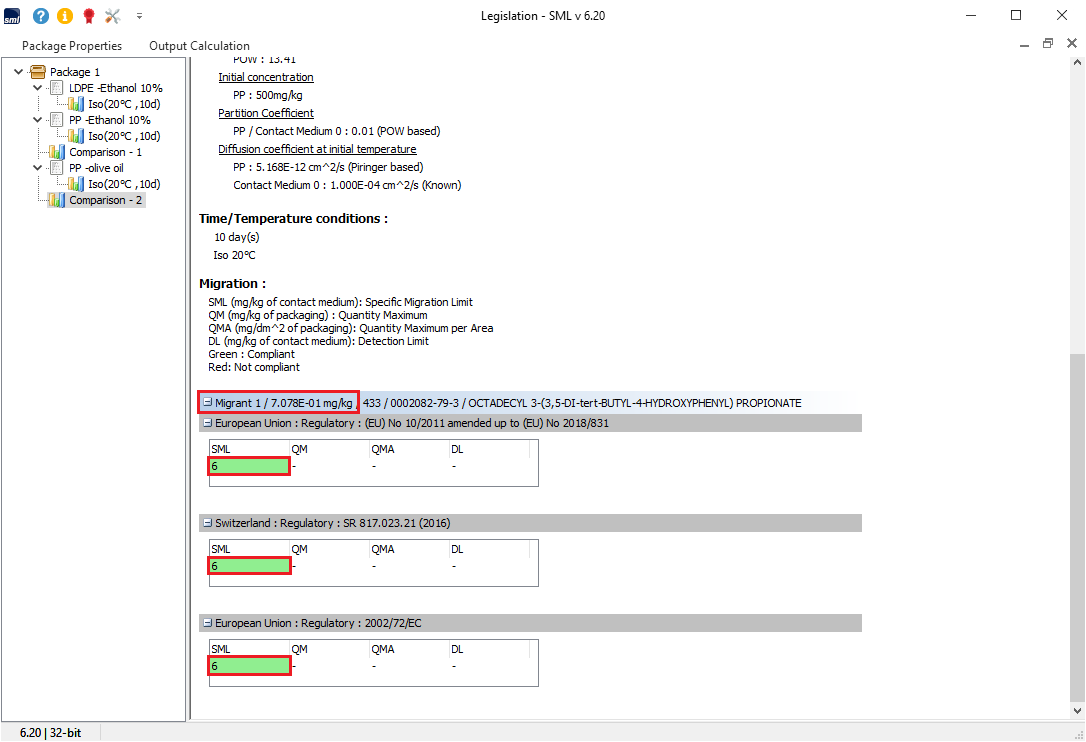

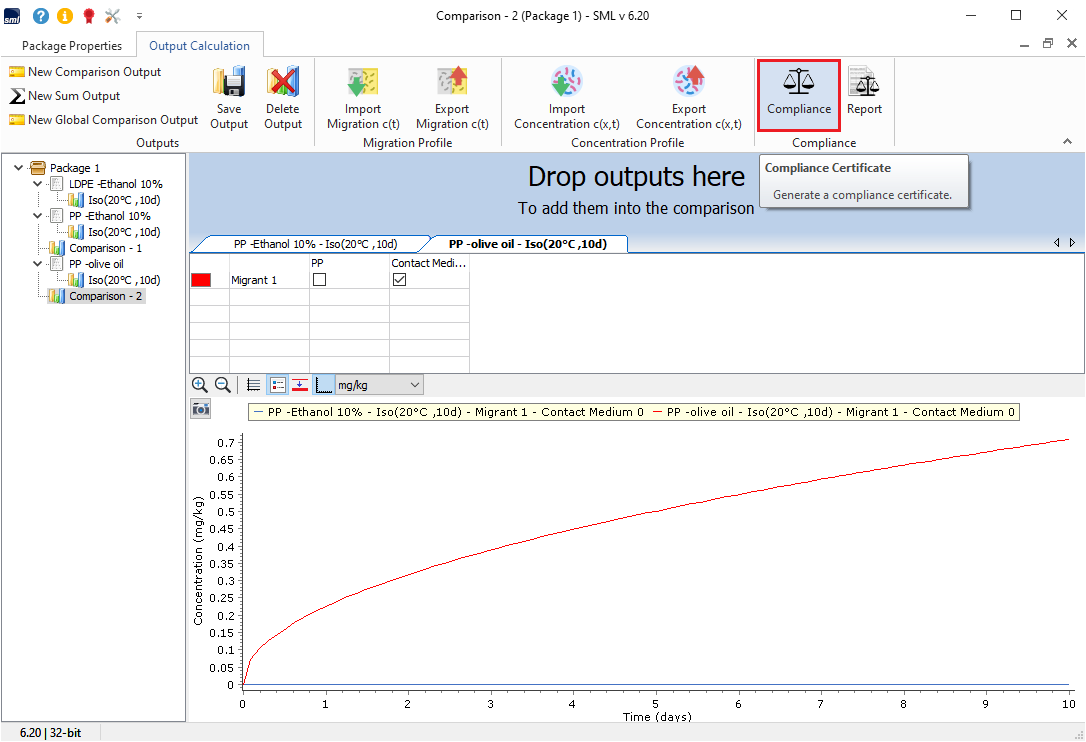

  • Compliance Certificate
